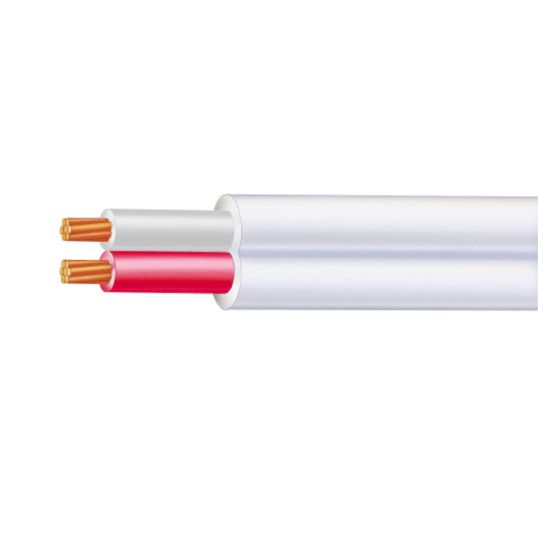

Flat Twin Active 2C 1mm PVC/PVC Red/White White 450/750V

Olex 1mm Flat Twin Active Cable Red/White 100mtr

PRODUCT CODE:
OLX1/113-2RWA1

Std Pack Size
100
OUR P/N:
OLX1/113-2RWA1

You need to be registered and logged in to view product details and pricing

Flat Twin Active Cable, 2 Core, 1 mm, Solid Copper, 450/750 Volt, 1/1.13 mm Strands, 6.5 mm x 4.2 mm Overall Diameter, 0.6 mm Insulation Thickness, 0.9 mm Sheath Thickness, Conductor Resistance: DC: 18.1 Ohm/km, AC: 25.8 Ohm/km, Insulation Resistance: 17 MOhm/km, V-90 PVC Insulation, PVC Sheath, Red White Cores, White Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.2

Additional Information

Additional Information
Brand Olex
Standard Pack Size 100
UNSPSC Class 26121600
UOM MTR
Vendor Product CACP02A1002WVAB
Conductor Type Solid Copper
Conductor Resistance DC: 18.1 Ohm/km AC: 25.8 Ohm/km
Core Colours Red/White
Insulation Material V-90 PVC
Insulation Thickness 0.6 mm
Insulation Resistance 17 MOhm/km
Overall Diameter 6.5 mm x 4.2 mm
Product Type Cables TPS SDI & Flat
Sheath Material PVC
Sheath Thickness 0.9 mm
Sheath Colour White
Standards AS/NZS 1125 AS/NZS 5000.2
Stranding 1/1.13 mm
Temperature 90 deg C
Voltage 450-750 Volt
Conductor Size 1 mm
Number of Cores 2
