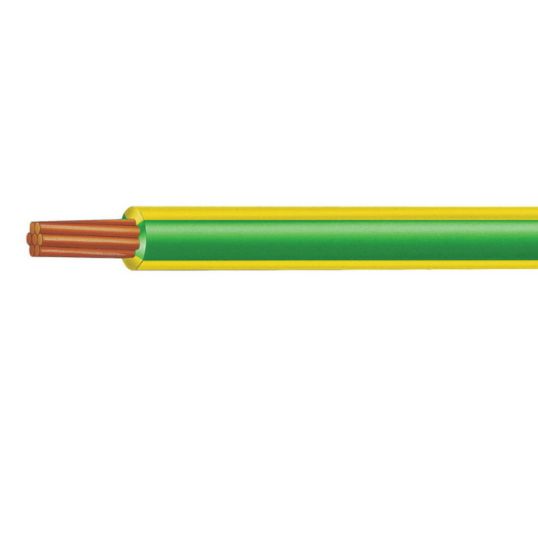

Olex 120mm Building Wire Green/Yellow 1mtr
Loading...
Description
Building Wire, 120 mm, Stranded Copper, 0.6-1 kV, 37/2.03 mm Strands, 16.4 mm Overall Diameter, 1 mtr Length, 1.6 mm Insulation Thickness, 8.4 kN Pulling Tension, DC: 0.153 Ohm/km AC: 0.188 Ohm/km Conductor Resistance, 3.6 MOhm/km Insulation Resistance, V-90 PVC Insulation, Green/Yellow Insulation, 90 deg C, AS/NZS 1125 AS/NZS 5000.1
Key Specifications
| Barcode (EAN-13) |
99319215010617
|
|---|---|
| SKU |
OLX37/203BWEWA9
|
| Brand |
Olex
|
| Product Type |
Building Wire
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121614 |
| UOM | MTR |
| Vendor Product | BAAP23AA001AAHN |
| Conductor Type | Stranded Copper |
| Conductor Resistance | DC: 0.153 Ohm/km AC: 0.188 Ohm/km |
| Insulation Colour | Green/Yellow |
| Insulation Resistance | 3.6 MOhm/km |
| Insulation Thickness | 1.6 mm |
| Insulation Material | V-90 PVC |
| Overall Diameter | 16.4 mm |
| Pulling Tension | 8.4 kN |
| Stranding | 37/2.03 mm |
| Standards | AS/NZS 1125 AS/NZS 5000.1 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
| Conductor Size | 120 mm |
