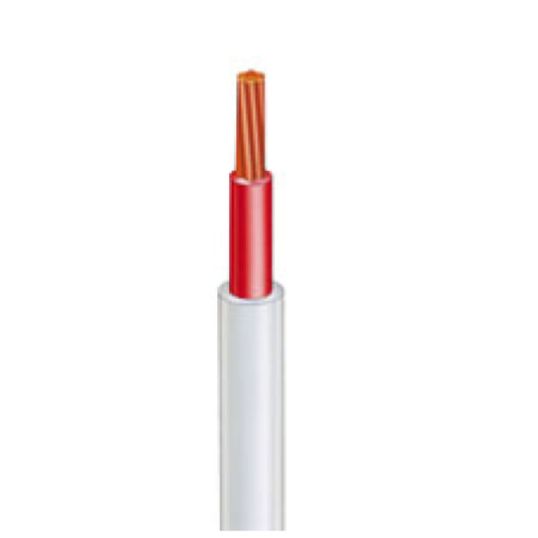

Olex 2.5mm SDI Cable Red 100mtr

Description

SDI Cable, 2.5 mm, Stranded Copper, 450-750 Volt, 1 Core, 7/0.67 mm Strands, 5.1 mm Overall Diameter, 100 mtr Length, 31 mm Bend Radius, 0.7 mm Insulation Thickness, 0.8 mm Sheath Thickness, DC: 7.41 Ohm/km AC: 9.01 Ohm/km Conductor Resistance, 9.2 MOhm/km Insulation Resistance, Red Core, V-90 PVC Insulation, PVC Sheath, White Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000.1 AS/NZS 5000.2

Key Specifications

Barcode (EAN-13)	9322576239952
SKU	OLX7/067-1RA1
Brand	Olex
Product Type	SDI Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	AABP07A1001WTRD
Bend Radius	31 mm
Conductor Resistance	DC: 7.41 Ohm/km AC: 9.01 Ohm/km
Conductor Size	2.5 mm
Conductor Type	Stranded Copper
Core Colours	Red
Insulation Material	V-90 PVC
Insulation Resistance	9.2 MOhm/km
Insulation Thickness	0.7 mm
Number of Cores	1 Core
Overall Diameter	5.1 mm
Sheath Colour	White
Sheath Material	PVC
Standards	AS/NZS 1125 AS/NZS 5000.1 AS/NZS 5000.2
Sheath Thickness	0.8 mm
Stranding	7/0.67 mm
Temperature	90 deg C
Voltage	450-750 Volt
