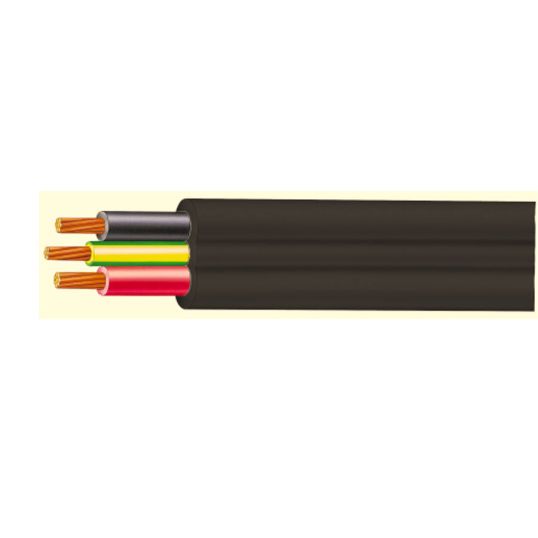

Flat Twin & Earth 2C+E 7/0.67 2.5mm PVC/PVC Black 450/750V

Olex 2.5mm Flat Twin & Earth Cable Black 1mtr


Std Pack Size

You need to be registered and logged in to view product details and pricing

Flat Twin & Earth Cable, 2 Core & Earth, 2.5 mm, Stranded Copper, 450/750 Volt, 7/0.67 mm Strands, 2.5 mm Earth Conductor, 12.2 mm x 5.4 mm Overall Diameter, 0.7 mm Insulation Thickness, 1 mm Sheath Thickness, Conductor Resistance: DC: 7.41 Ohm/km, AC: 9.01 Ohm/km, Insulation Resistance: 12 MOhm/km, V-90 PVC Insulation, PVC Sheath, Red Black Green/Yellow Cores, Black Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.2

Additional Information

Additional Information
Brand Olex
Standard Pack Size 500
UNSPSC Class 26121600
Vendor Product CNCP07A1002BKAA
Conductor Type Stranded Copper
Core Colours Red/Black/Green/Yellow
Conductor Resistance DC: 7.41 Ohm/km AC: 9.01 Ohm/km
Insulation Material V-90 PVC
Insulation Resistance 12 MOhm/km
Insulation Thickness 0.7 mm
Overall Diameter 12.2 mm x 5.4 mm
Product Type Power Cable
Sheath Colour Black
Sheath Material PVC
Sheath Thickness 1 mm
Standards AS/NZS 1125 AS/NZS 5000.2
Temperature 90 deg C
Voltage 450-750 Volt
Stranding 7/0.67 mm
Conductor Size 2.5 mm
Earth Conductor Size 2.5 mm
Number of Cores 2 + Earth
