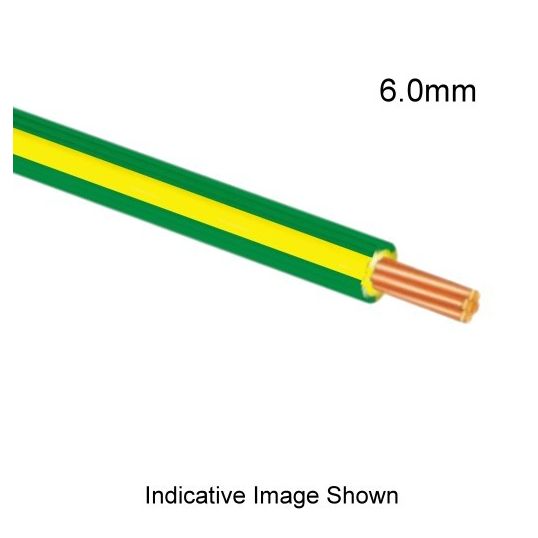

Building Wire 1 Core 6mm V-90 PVC Green/Yellow 0.6/1kV

Olex 6mm Building Wire Green/Yellow 1mtr

PRODUCT CODE:
OLX7/104BWEWA1

Std Pack Size
1
OUR P/N:
OLX7/104BWEWA1

You need to be registered and logged in to view product details and pricing

Building Wire, Single Insulated, 1 Core, 6 mm, Stranded Copper, 0.6/1 kV, 7/1.04 mm Strands, 5.1 mm Overall Diameter, 1 mm Insulation Thickness, Conductor Resistance: DC - 3.08 Ohm/km AC - 3.75 Ohm/km, Insulation Resistance: 8.6 MOhm/km, V-90 PVC Insulation, Unsheathed, Green/Yellow Insulation, 90 deg C, AS/NZS 1125, AS/NZS 5000.1

Additional Information

Additional Information
Brand Olex
Standard Pack Size 1
UNSPSC Class 26121500
UOM MTR
Vendor Product BAAP11A1001AAHN
Conductor Type Stranded Copper
Conductor Resistance DC: 3.08 Ohm/km AC: 3.75 Ohm/km
Insulation Colour Green/Yellow
Insulation Resistance 8.6 MOhm/km
Insulation Thickness 1 mm
Insulation Material V-90 PVC
Overall Diameter 5.1 mm
Product Type Building Wire
Stranding 7/1.04 mm
Standards AS/NZS 1125 AS/NZS 5000.1
Temperature 90 deg C
Voltage 0.6-1 kV
Conductor Size 6 mm
