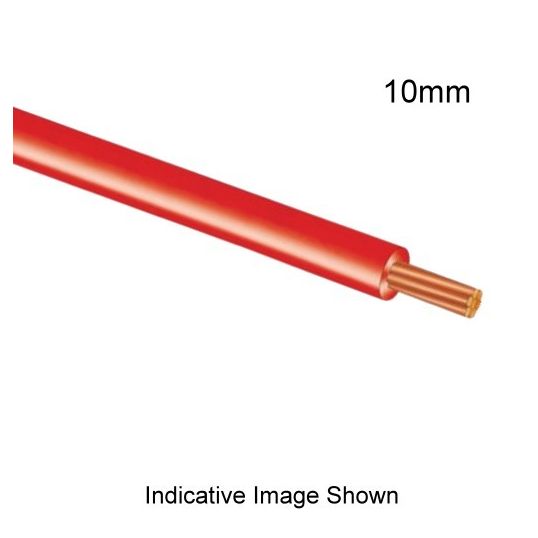

Olex 10mm Building Wire Red 1mtr

Description

Building Wire, Single Insulated, 1 Core, 10 mm, Stranded Copper, 0.6/1 kV, 7/1.35 mm Strands, 6 mm Overall Diameter, 1 mm Insulation Thickness, Conductor Resistance: DC - 1.83 Ohm/km AC - 2.23 Ohm/km, Insulation Resistance: 7.2 MOhm/km, V-90 PVC Insulation, Unsheathed, Red Insulation, 90 deg C, AS/NZS 1125, AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	9319215008413
SKU	OLX7/135BWRA1
Brand	Olex
Product Type	Building Wire

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121500
UOM	MTR
Vendor Product	BAAP13A1001AARD
Conductor Type	Stranded Copper
Conductor Resistance	DC: 1.83 Ohm/km AC: 2.23 Ohm/km
Insulation Colour	Red
Insulation Resistance	7.2 MOhm/km
Insulation Thickness	1 mm
Insulation Material	V-90 PVC
Overall Diameter	6 mm
Stranding	7/1.35 mm
Standards	AS/NZS 1125 AS/NZS 5000.1
Temperature	90 deg C
Voltage	0.6-1 kV
Conductor Size	10 mm
