SDI 1 Core 7/1.7 16mm PVC/PVC Red Core White 450/750V

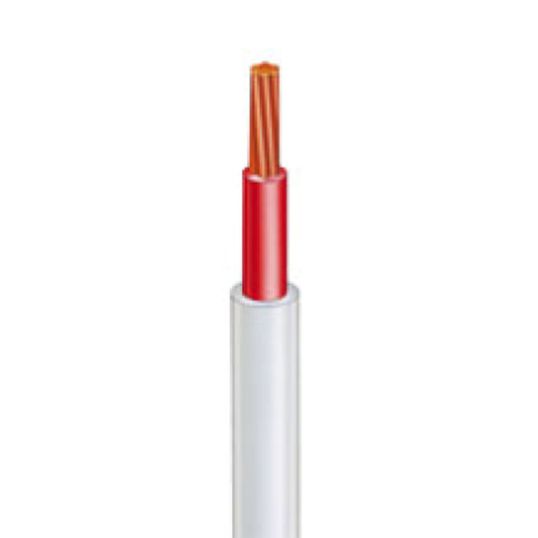

Olex 16mm Single Core Double Insulated Cable Red Core White Sheath 500mtr

PRODUCT CODE:
OLX7/170-1RA5

Std Pack Size
500
OUR P/N:
OLX7/170-1RA5

You need to be registered and logged in to view product details and pricing

Single Core Double Insulated Cable, 16 mm, Stranded Copper, 450/750 Volt, 7/1.7 mm Strands, 8.9 mm Overall Diameter, 1 mm Insulation Thickness, 1 mm Sheath Thickness, Conductor Resistance: DC: 1.15 Ohm/km, AC: 1.4 Ohm/km, Insulation Resistance: 6 MOhm/km, V-90 PVC Insulation, PVC Sheath, Red Core, White Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.1, AS/NZS 5000.2

Additional Information

Additional Information
Brand Olex
Standard Pack Size 500
UNSPSC Class 26121600
UOM MTR
Vendor Product AABP15A1001WVRD
Conductor Resistance DC: 1.15 Ohm/km AC: 1.4 Ohm/km
Conductor Type Stranded Copper
Core Colour Red
Insulation Material V-90 PVC
Insulation Resistance 6 MOhm/km
Insulation Thickness 1 mm
Overall Diameter 8.9 mm
Product Type Power Cable
Sheath Material PVC
Sheath Colour White
Standards AS/NZS 1125 AS/NZS 5000.1 AS/NZS 5000.2
Temperature 90 deg C
Sheath Thickness 1 mm
Stranding 7/1.7 mm
Voltage 450-750 Volt
Conductor Size 16 mm
Number of Cores 1
