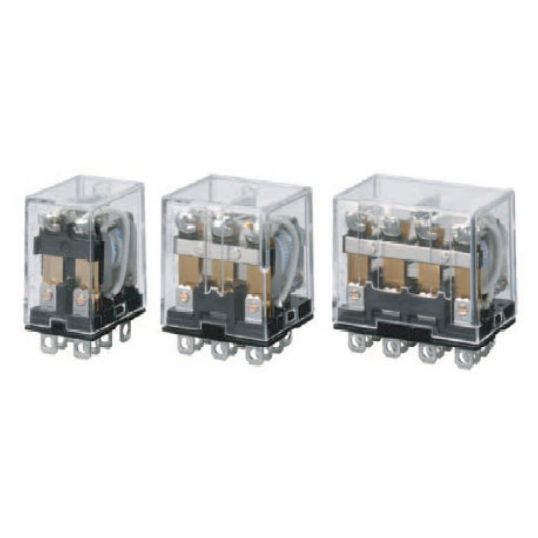

Omron Power Relay Plug-In Mount 2P DPDT 15A 240V 8 Pin Flat Plug-In Mount

Description

Power Relay, 220-240 Volt AC, 240 Volt AC Coil Voltage, 15 Amp, 0.9-1.1 VA, 8 Pin Flat, 2 Pole, DPDT Configuration, 18790 Ohm, 25 Operate/Release ms Operating Time, Plug-In Mounting, Ag Alloy Contact, -25 to 55 deg C, 28 mm Height, 42.4 mm Width, 21.5 mm Depth

Key Specifications

Barcode (EAN-13)	4536853612429
SKU	OMRLY2NAC240
Brand	Omron
Product Type	Power Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Wiring work can be shortened by as much as 60% compared to conventional screw terminal sockets by combining with push-in plus terminal sockets that feature light insertion force and strong pull-out strength to achieve less wiring work Equipped with an arc barrier for arc interruption New built-in diode and built-in CR circuit models have joined the series Single-pole and double-pole models have AC4 ratings and DC2 ratings Three-pole and four-pole models have AC4 ratings and DC2 ratings When both push-in plus terminals and screw terminal sockets are combined with plug-in terminal types
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	LY2N AC220/240
Contact Configuration	DPDT
Contact Material	Ag Alloy
Current	15 Amp
Height	28 mm
Depth	21.5 mm
Mounting Method	Plug-In
Number Of Poles	2 Pole
Operating Coil Voltage	240 Volt AC
Operating Time	25 Operate/Release ms
Pin Configuration	8 Pin Flat
Temperature	-25 to 55 deg C
Power Rating	0.9-1.1 VA
Resistance	18790 Ohm
Width	42.4 mm
Voltage	220-240 Volt AC
