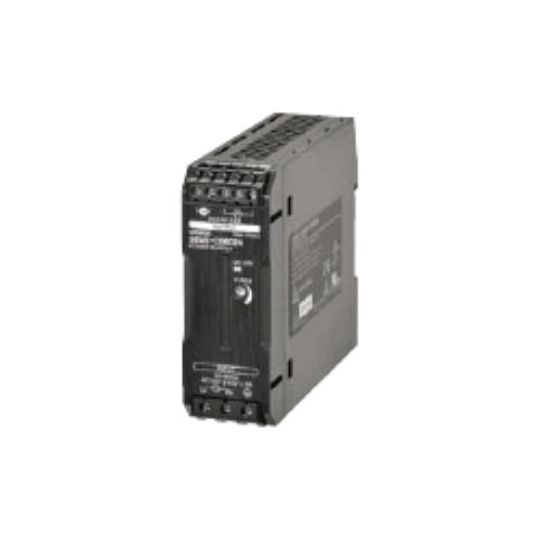

Omron Power Supply Single Phase In 100-240V/90-350VDC Out 24VDC 60W 2.5A DIN Rail Mount

$Omron\Omron_S8VK-C06024.jpg$

Description

Power Supply Single Phase, 100-240 Volt AC/90-350 Volt DC Input Voltage, 24 Volt DC Output Voltage, 2.5 Amp, 60 Watt Output, 50/60 Hz, 1 Phase Phase, 0.44 Power Factor, DIN Rail Mounting, IP20, 88% Efficiency, -25 to 60 deg C, 90 mm Height, 32 mm Width, 110 mm Depth

Key Specifications

Barcode (EAN-13)	4548583357907
SKU	OMRS8VK-C06024
Brand	Omron
Product Type	Power Supplies

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Universal input for worldwide applications Compact dimension for small space Flexible installation by special mounting brackets
Standard Pack Size	1
UNSPSC Class	39121000
UOM	EA
Vendor Product	S8VK-C06024
Current	2.5 Amp
Depth	110 mm
Efficiency	88%
Frequency	50/60 Hz
Height	90 mm
Input Voltage	100-240 Volt AC/90-350 Volt DC
IP Rating	IP20
Mounting Method	DIN Rail
Output Voltage	24 Volt DC
Output Rating	60 Watt
Phase	1 Phase
Width	32 mm
Temperature	-25 to 60 deg C
Power Factor	0.44
