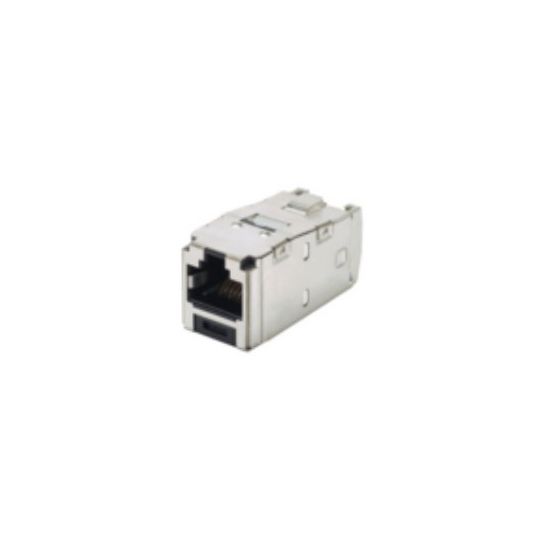

Panduit Mini-Com Pan-Net Keystone Mechanism Cat6 STP Shielded RJ45 T568A/B Black
Loading...
Description
Keystone Mechanism Cat6 STP Shielded RJ45, 22-26 AWG, RJ45 Connector, Cat6 STP Shielded Cable, Wiring Scheme: T568A/B, TG Style Termination, ABS Housing, Plated Phosphor Bronze Contact Base, Black,-10 to 65 deg C, 38.1mm Length, 18.8mm Height, 15.7mm Width, 38.1mm Depth
Key Specifications
| Barcode (EAN-13) |
7498303563
|
|---|---|
| SKU |
PADCJS688TGY
|
| Brand |
Panduit
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | CJS688TGY |
| Cable Type | Cat6 STP Shielded |
| Colour | Black |
| Conductor Size | 22-26 AWG |
| Connector | RJ45 |
| Contact Base Material | Plated Phosphor Bronze |
| Depth | 38.1mm |
| Height | 18.8mm |
| Housing Material | ABS |
| Temperature | -10 to 65 deg C |
| Termination Type | TG Style |
| Width | 15.7mm |
| Wiring Scheme | T568A/B |
