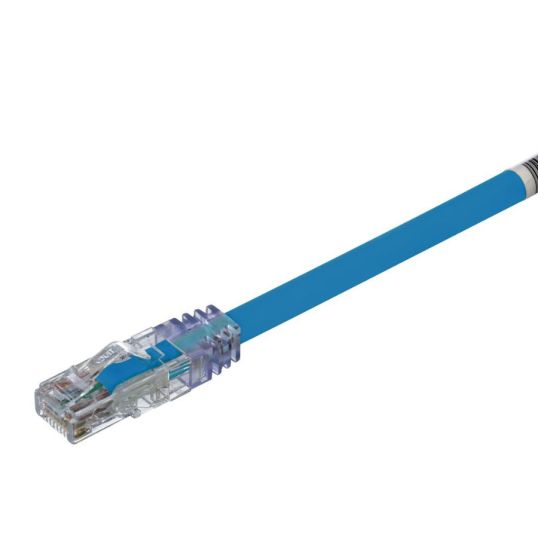

Panduit TX6A UTP Patch Cord Cat6A Unshielded Modular Plug 2 Pair 24 AWG Blue 2m

$Panduit\Panduit_UTP6AX2MBU.jpg$

Description

The TX6A™ 10Gig CAT 6A UTP Patch Cord is a 2 mtr, 0.250 in (6.4 mm) diameter, Blue cord constructed of 24 AWG, unshielded, twisted pair, solid, CM cable with high-performance modular plugs. Its solid foil tape limits alien crosstalk, ensuring 10 Gb/s transmission. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Key Specifications

Barcode (EAN-13)	61305677089
SKU	PADUTP6AX2MBU
Brand	Panduit
Range Name	TX6A

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	100% performance tested for wire map, NEXT, and return loss: confidence that each patch cord delivers critical electrical component level performance, centred de-embedded plug performs in centre of ANSI/TIA-568.2-D CAT 6A component range, ensuring interoperability and optimum performance Smaller diameter, flexible cable design: Tight bend radius enables improves cable routing and management in high density applications. Smaller cable diameter allows twice the amount of cords to be routed through cable managers and pathways compared to traditional CAT 6A patch cords. Reduced cable diameter improves air flow, cooling, resulting in lower operating costs than traditional CAT 6A patch cords Patented tangle-free latch: Prevents snag time on frequent moves, adds, and changes Integral pair manager: Optimizes performance and consistency by reducing untwist at plug Patented tangle-free latch: Prevents snags and provides easy release, saving time on frequent moves, adds, and changes Robust construction: Plug contact plated with 50 micro inches of gold and rated to 2500 mating cycle Slender strain relief boot Robust construction
Standard Pack Size	1
UNSPSC Class	43223300
UOM	EA
Vendor Product	UTP6AX2MBU
Cable Diameter	6.4 mm
Conductor Material	Polycarbonate
Conductor Size	24 AWG
Connector A	Modular
Connector B	Modular
Contact Material	Gold Plated
Cord Length	2 mtr
Current	100 mA
Flammability	CM
Frequency Bandwidth	500 MHz
Outside Diameter	6.4 mm
Pair Count	2 Pair
Plug Boot Material	Polycarbonate
Sheath Colour	Blue
Sheath Material	CM
Temperature	10 to 60 deg C
Wiring Scheme	T568A/B
Voltage	3.5 Volt
