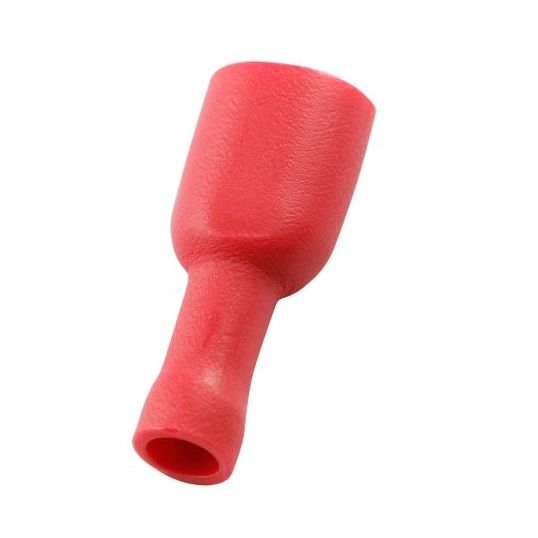

Panduit Quick Connect Female Insulated Double Grip 0.5-1mm 6.3mm Tab Red Vinyl

$Panduit\Panduit_EDV18-250FIB-Q.jpg$

Description

QC Terminal, Female, Insulated, Double Grip, Conductor Size: 0.5-1 mm, Tab Size: 6.3mm, Wire Strip Length: 7.1mm, Barrel Length: 7.5mm, Seam Type: Butted, 300 Volt Maximum, Crimping Die: KST2000C, Mounting Method: Free Hanging, Base Material: Copper, Conductive Material: Copper, Insulation Material: Vinyl, Red Insulation, Tin Plated Finish, 75 deg C, Max. Wire Insulation Diameter: 3.8mm, 22mm Length, 6.6mm Width, Thickness: 0.4mm, 25 Pack

Key Specifications

SKU	PANEDV18-250FIB-Q
Brand	Panduit
Range Name	StrongHold
Product Type	Quick Connect Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	25
UNSPSC Class	39121400
UOM	EA
Vendor Product	EDV18-250FIB-Q
Barrel Length	7.5 mm
Base Material	Copper
Conductive Material	Copper
Conductor Size	0.5-1mm
Crimping Die	KST2000C
Finish	Tin Plated
Insulation Material	Vinyl
Insulation Colour	Red
Mounting Method	Free Hanging
Pack Size	25 Pack
Seam Type	Butted
Tab Size	6.3 mm
Temperature	75 deg C
Thickness	0.4 mm
Voltage Rating	300 Volt
Width	6.6 mm
Wire Insulation Diameter	3.8 mm
Wire Strip Length	7.1 mm
