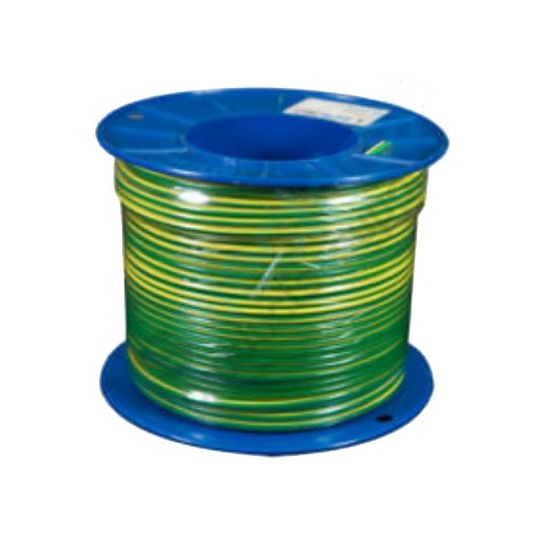

PGK Solar Earthing Cable 4mm 450/750V PVC Green/Yellow

Description

Solar Earthing Cable, 450-750 Volt, 4 mm, 1 Core, 56/0.285 mm Strands, 4.30 +/-0.2 mm Overall Diameter, 0.9 mm Insulation Thickness, Unaged>=125%/After Aging <=30% Elongation, Unaged >=10 N/sq-mm/After Aging <=30% Tensile Strength, 4.59 Ohm km at 20 deg C Conductor Resistance, 0.0079 MOhm/km at 70 deg C Insulation Resistance, Bare Copper Conductor, PVC Insulated Unsheathed Insulation, Green/Yellow Sheath, 70 deg C, GB/T 5023-2008

Key Specifications

SKU	PGKSE023
Brand	PGK
Product Type	Solar Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	SE023
Conductor Resistance	4.59 Ohm km at 20 deg C
Conductor Material	Bare Copper
Conductor Size	4 mm
Elongation	Unaged>=125%/After Aging <=30%
Insulation Material	PVC Insulated Unsheathed
Insulation Resistance	0.0079 MOhm/km at 70 deg C
Insulation Thickness	0.9 mm
Number of Cores	1 Core
Overall Diameter	4.30 +/-0.2 mm
Sheath Colour	Green/Yellow
Standards	GB/T 5023-2008
Stranding	56/0.285 mm
Temperature	70 deg C
Voltage	450-750 Volt
Tensile Strength	Unaged >=10 N/sq-mm - After Aging <=30%
