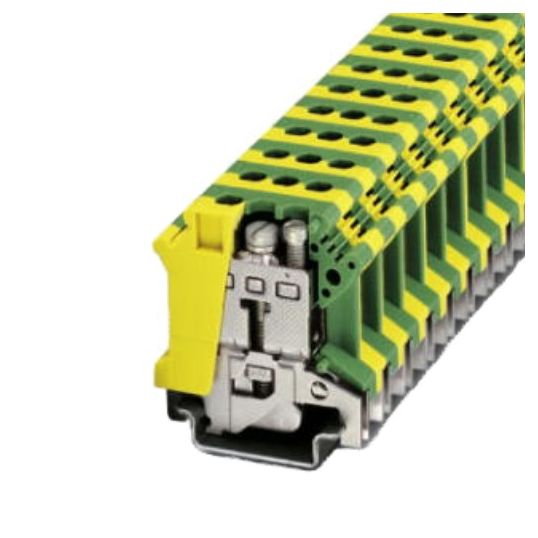

Phoenix Contact Rail Earth Terminal Block Screwed 2 Wire 1 Level 2.5-25mm Green/Yellow Polyamide

Description

Rail Earth Terminal Block, Rated Surge Voltage: 6 kV, 2.5-25mm Conductor, 2 Conductors, Wire Strip Length: 11 mm, Tightening Torque: 1.5 to 1.8 N/m, Wiring Format: 2 Conductor Through, 2 Connection Points, 1 Level, Screw Terminal, Insulation Material: Polyamide, Green/Yellow, -60 to 105 deg C, Flammability: V0, Height: 47 mm NS 35/7,5, 54.5 mm NS 35/15, 52 mm NS 32, 42.5 mm Width, 12 mm Depth

Key Specifications

SKU	PHO0443052
Brand	Phoenix Contact
Product Type	Rail Earth Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	USLKG 1,5 N to USLKG 16 N standard ground terminal blocks can be used in conjunction with the neutral busbar
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	0443052
Depth	12 mm
Conductor Size	2.5-25mm
Colour	Green/Yellow
Flammability	V0
Height	47 mm NS 35/75; 54.5 mm NS 35/15; 52 mm NS 32
Insulation Material	Polyamide
Number of Connection Points	2
Mounting Method	NS 32 - NS 35/75 - NS 35/15
Number of Conductors	2
Number of Levels	1
Terminal Type	Screw
Rated Surge Voltage	6 kV
Tightening Torque	1.5-1.8 Nm
Width	42.5 mm
Wire Strip Length	11 mm
Wiring Format	2 Conductor Through
