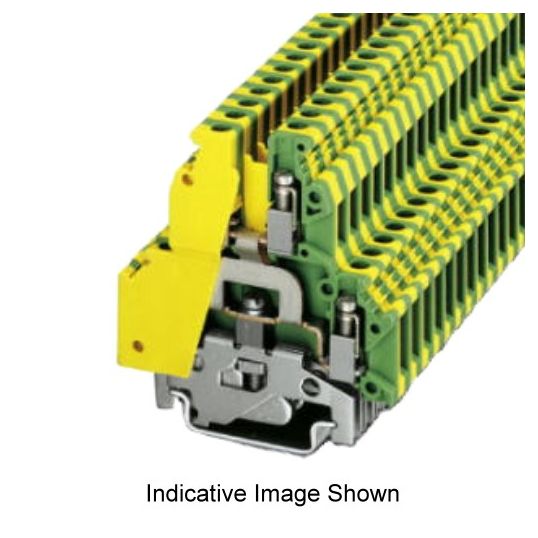

Phoenix Contact Rail Earth Terminal Block Double Deck Screwed 2x2 Wire 2 Level 0.2-4mm Green/Yellow Polyamide

$Phoenix_Contact\Phoenix_Contact_2774211.jpg$

Description

Ground Terminal, 0.2-4 mm, 4 Conductors, 6 kV Rated Surge Voltage, 8 mm Wire Strip Length, 0.6-0.8 Nm Tightening Torque, 2x2 Conductor Through Wiring Format, 4 Connection Points, 2 Level, Screw Terminal, NS 35/15 - NS 35/7,5 Mounting, Polyamide Insulation, Green/Yellow, -60 to 110 deg C, UL94 V2 Flammability, 56 mm Height, 6.2 mm Width, 67 mm NS 32; 62 mm NS 35/7,5; 69.5 mm NS 35/15 Depth

Key Specifications

SKU	PHO2774211
Brand	Phoenix Contact

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Same shape and pitch as the feed-through terminal blocks Universal protective conductor foot for mounting on NS 35... or NS 32... DIN rails (with the exception of NS 35/15?2, 3) The offset levels offer unobstructed access to the lower connection level even when fully wired
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	2774211
Depth	67 mm NS 32 - 62 mm NS 35/75 - 69.5 mm NS 35/15
Conductor Size	0.2-4mm
Colour	Green/Yellow
Flammability	UL94 V2
Height	56 mm
Insulation Material	Polyamide
Number of Connection Points	4
Mounting Method	NS 35/15 - NS 35/75
Number of Conductors	4
Number of Levels	2
Terminal Type	Screw
Rated Surge Voltage	6 kV
Tightening Torque	0.6-0.8 Nm
Temperature	-60 to 110 deg C
Width	6.2 mm
Wire Strip Length	8 mm
Wiring Format	2x2 Conductor Through
