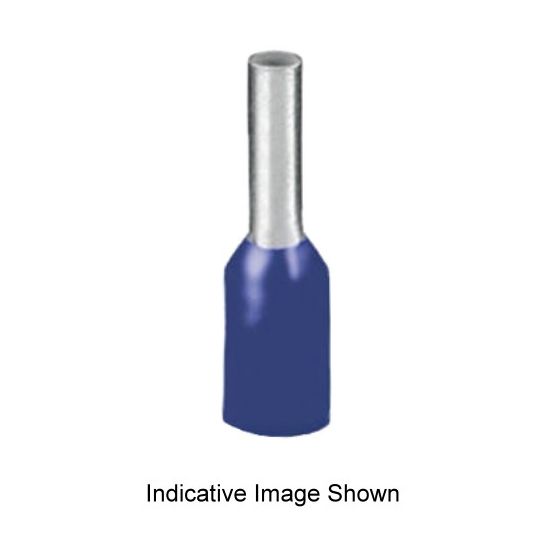

Phoenix Contact Bootlace Ferrule Insulated with Collar 16mm 6x18mm Pin Blue 29mm OAL

Description

Bootlace Ferrule, Insulated with Collar, Conductor Size: 16 mm, 29mm Overall Length, Max. Wire Strip Length: 22mm, Collar Inside Diameter: 8.7mm, Collar Thickness: 0.5mm, Pin Diameter: 6mm, Pin Length: 18mm, Pin Thickness: 0.2mm, Sleeve Material: Electrolytic Copper, Insulation Material: Polypropylene, Tin Plated Finish, Blue Insulation, Flammability: UL94-HB, 105 deg C, 100 Pack, with Collar

Key Specifications

SKU	PHO3200629
Brand	Phoenix Contact
Product Type	Bootlace Ferrules

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The ferrules with plastic sleeve are made from soft tin plated electrolytic copper The insulation reliability of close connections is increased and the splicing of wires is prevented The AI 0,25.. ferrules can also be used to process 0.14 sq-mm conductors
Standard Pack Size	100
UNSPSC Class	39121400
UOM	PK
Vendor Product	3200629
Collar Inside Diameter	8.7 mm
Collar Thickness	0.5 mm
Conductor Size	16 mm
Finish	Tin Plated
Insulation Colour	Blue
Flammability	UL94-HB
Pack Size	100 Pack
Overall Length	29 mm
Pin Diameter	6 mm
Pin Thickness	0.2 mm
Pin Length	18 mm
Please Note	with Collar
Sleeve Material	Electrolytic Copper
Temperature	105 deg C
Wire Strip Length	22 mm
