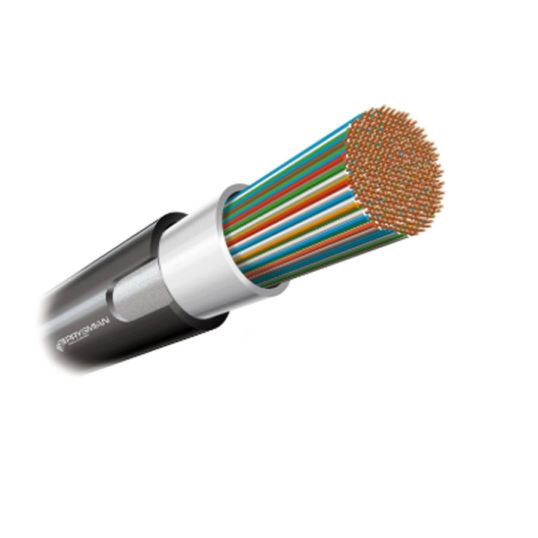

Prysmian External Telephone Cable 22AWG 10 Pair 0.64mm Annealed Solid Copper Polyethylene Black 56.4 Ohm/km

$Prysmian\Prysmian_T10P64PEJMN.JPG$

Description

External Telephone Cable, 22 AWG Conductor, 0.64 mm Conductor Diameter, 56.4 Ohm/km Conductor Resistance, 20000 MOhm/km Insulation Resistance, 20 mm Bend Radius, 10 Pair, Annealed Solid Copper, Cellular Polyethylene Insulation, Black Polyethylene Sheath, -10 to 70 deg C, 1000 mtr Length, 10.5 mm OD

Key Specifications

Barcode (EAN-13)	9310835446623
SKU	PIRT10P64PEJMN
Brand	Prysmian

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	60056477
Bend Radius	20 mm
Conductor Diameter	0.64 mm
Conductor Material	Annealed Solid Copper
Conductor Resistance	56.4 Ohm/km
Conductor Size	22 AWG
Insulation Resistance	20000 MOhm/km
Insulation Material	Cellular Polyethylene
Outside Diameter	10.5 mm
Pair Count	10 Pair
Sheath Colour	Black
Sheath Material	Polyethylene
Temperature	-10 to 70 deg C
