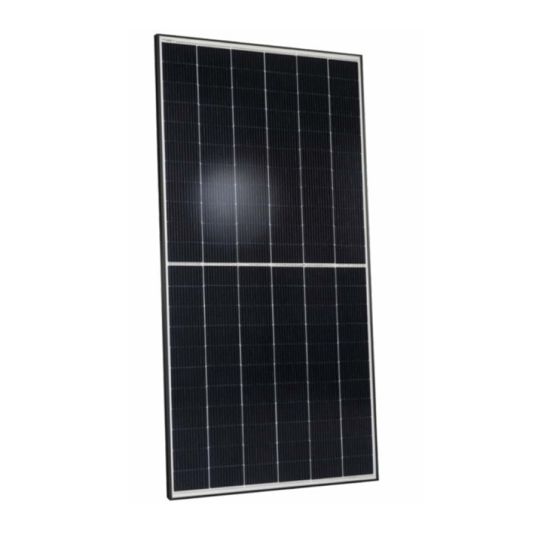

Q Cells Solar Panel 405W Mono-Crystalline Q.PEAK DUO ML-G10 132 Half Cells Black Anodised Aluminium Frame 25 Years

$Q_Cells\Q_Cells_K.QPEAKDUOMLG10-405.jpg$

Description

Solar Panel, Mono-Crystalline Cell, 132 Cell, 405 Watt, 37.85 Volt, 10.7 Amp, 45.09 Volt Open Circuit Voltage, 11.19 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1000 Volt Max. System Voltage, >=20.6% Efficiency, +5 Watt/-5 Watt Power Tolerance, Staubli MC4 IP68 Connector, 4 mm Solar Cable (+) >=1250mm, (-) >=1250mm Output Cables, 53 - 101 mm x 32 - 60 mm x 15 - 18 mm IP67 with Bypass Diodes Junction Box, Black Anodised Aluminium Frame, 3.2 mm Thermally Pre-Stressed Glass w/Anti-Reflection Technology, -0.34% K Temperature Coefficient, -40 to 85 deg C, 1879 mm Length, 1045 mm Width, 32 mm Height, 22 kg, IEC 61215:2016; IEC 61730:2016, DIN EN 50380, 25 Years Limited, 25 years Limited Linear Performance, Composite Film Back Cover

Key Specifications

SKU	QCLK.QPKDUOMLG10+405
Brand	Q Cells
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Breaking The 21% Efficiency Barrier - Q.ANTUM DUO Z Technology with zero gap cell layout boosts module efficiency up to 21.4% The Most Thorough Testing Programme In The Industry - Q CELLS is the first solar module manufacturer to pass the most comprehensive quality programme in the industry: The new Quality Controlled PV of the independent certification institute T?V Rheinland Innovative All-Weather Technology -Optimal yields, whatever the weather with excellent low-light and temperature behaviour Enduring High Performance - Long-term yield security with Anti LID Technology, Hot-Spot Protect and Traceable Quality Tra.Q Extreme Weather Rating - High-tech aluminium alloy frame, certified for high snow (5400Pa) and wind loads (4000Pa) A Reliable Investment - Inclusive 25-year product warranty and 25-year linear performance warranty
Standard Pack Size	32
UNSPSC Class	26111600
UOM	EA
Vendor Product	K.QPEAKDUOMLG10+405
Certifications	IEC 61215 2016 IEC 61730 2016 DIN EN 50380
Connector Type	Staubli MC4
Cell Type	Monocrystalline
Efficiency	>=20.6%
Frame Construction	Anodized Aluminium
Front Glass	3.2 mm Thermally Pre-Stressed Glass w/Anti-Reflection Technology
Height	32 mm
Item Weight	22 kg
Junction Box	53-101 mm x 32-60 mm x 15-18 mm with Bypass Diodes
Max. System Voltage	1000 Volt
Max. Current	10.7 Amp
Max. Voltage	37.85 Volt
Max. Fuse Current	20 Amp
Number Of Cells	132
Open Circuit Voltage	45.09 Volt
Operating Temperature	-40 to 85 deg C
Please Note	Composite Film Back Cover
Power Tolerance	+5 Watt/-5 Watt
Short Circuit Current	11.19 Amp
Output Cables	4 mm Solar Cable: (+) >=1250 mm/(-) >=1250 mm
Temperature Coefficient	-0.34% K
Warranty	25 Years Limited/25 years Limited Linear Performance
Width	1045 mm
Wattage	405 Watt
