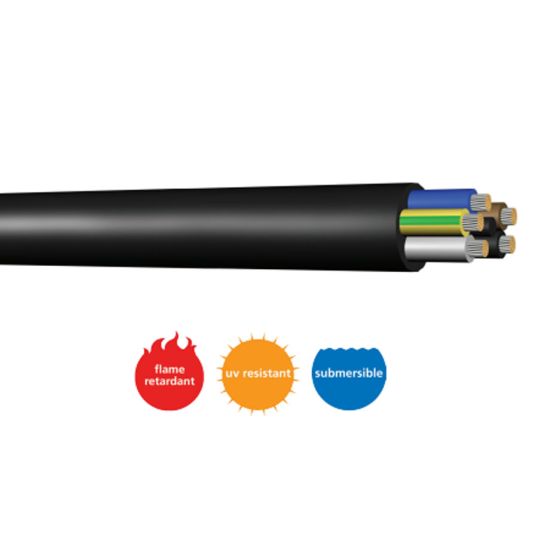

Ralos H07RN-F Power & Control Cable 2 Core + Earth 2.5mm 600/1000V Tinned Copper Rubber/Rubber Black

Description

Flexible Control Cable, 2.5 mm, Class 5 Tinned Annealed Copper, 0.6-1 kV, 2 Core + Earth, 12 mm Overall Diameter, Static 36 mm Flexible 48 mm Mech Load 72 mm Bend Radius, 0.9 mm Insulation Thickness, 1.8 mm Sheath Thickness, 8.21 Ohm/km Conductor Resistance, EPR Insulation, EM2 CPE Sheath, Black Sheath, Static -40 to 90 deg C Flexible -25 to 90 deg C, BS EN 50525-2-21 IEC 60092-353 AS/NZS 5000.1 IEC 60331-2

Key Specifications

SKU	RALRB3G2.5
Brand	Ralos
Range Name	H07RN-F
Product Type	Flexible Control Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Submersible to 500 metres UV resistant Flame retardant Oil resistant Tinned conductors
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	RB3G2.5
Bend Radius	Static 36 mm - Flexible 48 mm - Mech Load 72 mm
Conductor Resistance	8.21 Ohm/km
Conductor Size	2.5 mm
Conductor Type	Class 5 Tinned Annealed Copper
Insulation Material	EPR
Insulation Thickness	0.9 mm
Number of Cores	2 Core + Earth
Overall Diameter	12 mm
Sheath Colour	Black
Sheath Material	EM2 CPE
Sheath Thickness	1.8 mm
Standards	BS EN 50525-2-21 IEC 60092-353 AS/NZS 5000.1 IEC 60331-2
Temperature	Static -40 to 90 deg C Flexible -25 to 90 deg C
Voltage	0.6-1 kV
