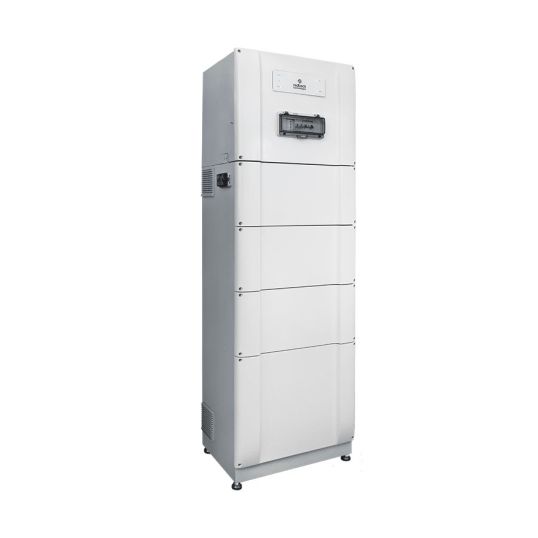

Redback AC-Coupled Smart Battery Complete 9.6kWh 4.5kVA 1 Phase 230V

Description

AC-Coupled Smart Battery Complete, 9.6 kWh, 96.6% Efficiency, 230 Volt AC 50 Hz, 1 Phase, RJ45, 3x Digital I/O, +DC5V & GND Terminal, IP54, Aluminium, Sealed and Powder Coated, 518mm Width, 1655mm Height, 370mm Depth, 165 kg, AS/NZS 4777.2:2020, IEC 62109-1:2010, EN 61000, RCM, CE, AS/NZS 3000:2018, AS/NZS 5033:2014 (Amd 1 & 2), AS/NZS 5139:2019

Key Specifications

SKU	RDKSB9600
Brand	Redback
Product Type	AC-Coupled Smart Battery

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	AC Coupled Battery Storage Backup Supply in a Power Outage (when backup circuit is connected) Compatible with most modern solar systems Indoor or outdoor installation Easy monitoring app and portal Australian supported 10 year warranty
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	SB9600
Capacity (kWh)	9.6 kWh
Certifications	AS/NZS 4777.2:2020 IEC 62109-1:2010 EN 61000 RCM CE
Efficiency	96.60%
Height	1655 mm
Depth	370 mm
IP Rating	IP54
Item Weight	165 kg
Phase	1 Phase
Standards	AS/NZS 3000:2018 AS/NZS 5033:2014 (Amd 1 & 2) AS/NZS 5139:2019
Voltage	230 Volt
Width	518 mm
