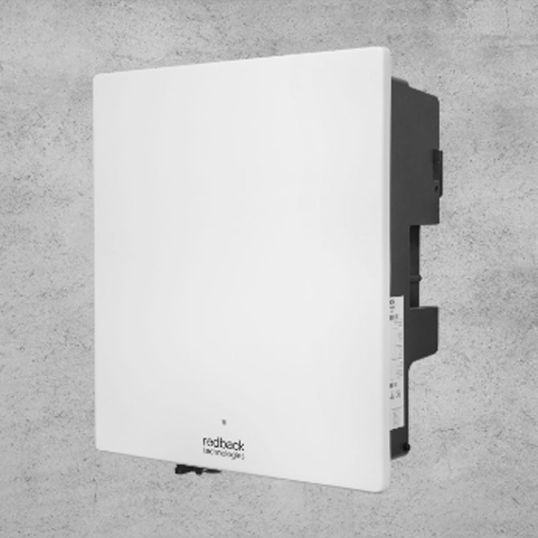

Redback Smart Solar Inverter 2MPPT Single Phase 10kVA

$Redback\Redback_SI10000.jpg$

Description

Solar Inverter, 1 Phase Phase, 10000 VA DC Input, 550 Volt DC DC Input, 70-540 Volt DC DC MPPT Voltage Range, 26 Amp DC Max. Input, 2 MPPTs, 10000 VA AC Output, 10000 VA AC Max. Apparent, 230 Volt AC, 50 Hz, 45.5 Amp AC Output, 0.8 Lagging-0.8 Leading Power Factor, <3% Total Harmonic Distortion, 0.975 Efficiency, 0.968 European Weighted Efficiency, Transformerless, 0-4000 mtr Max. Altitude, Bluetooth/Wi-Fi/Ethernet (Optional)/LTE (Optional) NFC, Coded/Coloured LED Display, <30 dBA, IP65, -25 to 60 deg C

Key Specifications

SKU	RDKSI10000
Brand	Redback
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Easy commissioning with the RedbackInstall App 10 years Australia supported warranty Suitable for indoor and outdoor Installation Smart load control Smart meter and Wi-Fi dongle included
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	SI10000
AC Nominal Voltage	230 Volt AC
AC Max. Apparent Power	10000 VA
AC Operating Frequency	50 Hz
AC Output Power	10000 VA
AC Output Current	45.5 Amp
DC Input Power	10000 VA
Communication Port	Bluetooth/Wi-Fi/Ethernet (Optional)/LTE (Optional) NFC
DC Input Voltage	550 Volt DC
DC MPPT Voltage Range	70-540 Volt DC
DC Max. Input Current	26 Amp
Depth	192 mm
European Weighted Efficiency	0.968
Display Type	Coded/Coloured LED
Efficiency	0.975
Max. Operating Altitude	0-4000 mtr
Height	531 mm
IP Rating	IP65
Operating Temperature	-25 to 60 deg C
Noise Level	<30 dBA
Number of MPPTs	2
Phase	1 Phase
Power Factor	0.8 Lagging-0.8 Leading
Relative Humidity	0-100%
Width	400 mm
Total Harmonic Distortion	<3%
Topology	Transformerless
