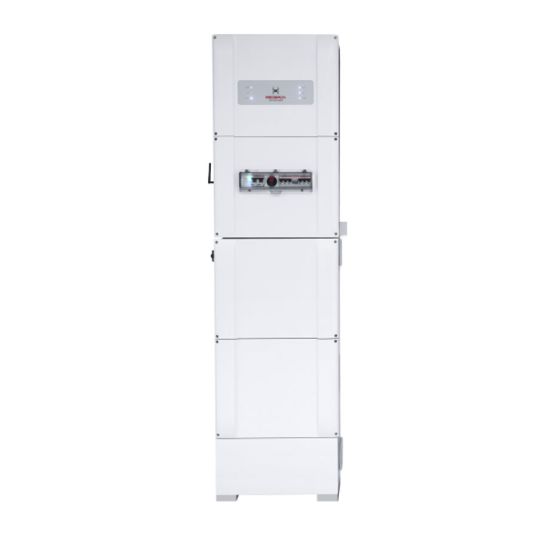

Redback Smart Hybrid System ST1000 RB-HVC-600-40 BE14000-HV H48074 2 MPPT 3 Phase 10kVA 12.5/22A

Description

Smart Hybrid System, 3 Phase, 13 kW DC Input, 200-550 Volt DC MPPT Voltage Range, 180 Volt DC Start-up, 12.5/22 Amp DC Max. Input, 2 MPPTs, 10 kVA AC Output, 400 Volt AC Nominal, 50 Hz AC Operating, <3% Harmonic Distortion, 97.6% Efficiency, 96.8% European Weighted Efficiency, 99.9% MPPT Efficiency, Transformerless, <4000 mtr Max. Altitude, Lithium-Ion Phospate, Bluetooth, Wi-Fi or Ethernet Communication Port, Coded, Coloured LED Display, Natural Convection Cooling, <30 dB, IP66, 4K4H, Battery Cabinet: Steel Chassis; Inverter, BoS & Covers: Aluminum, Sealed and Powder Coated, -35 to 60 deg C, 0-95% Relative Humidity, 1960 mm Height, 1189 mm Width, 352 mm Depth, 205 kg (Installed, with 4 x H48074)

Key Specifications

SKU	RDKST-14.2KWHBUNDLE
Brand	Redback
Product Type	Hybrid Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Three Phase - Combines a 10kVA Solar Inverter with two standard battery storage capacity 3 Phase Back up supply in a power outage (when backup circuit is connected) Suitable for Indoor & Outdoor Installation Site Manager Functionality Streamlined all-in-one design Easy monitoring app and portal Australian supported 10 year warranty
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	ST-14.2KWHBUNDLE
AC Nominal Voltage	400 Volt
AC Operating Frequency	50 Hz
AC Output Power	10 kVA
Communication Port	Bluetooth/Wi-Fi or Ethernet
Climate Category	4K4H
Battery	Lithium-Ion Phospate
Cooling Method	Natural Convection
DC Input Power	13 kW
DC MPPT Voltage Range	200-550 Volt
DC Start-up Voltage	180 Volt
DC Max. Input Current	12.5-22 Amp
Display Type	Coded Coloured LED
Depth	352 mm
Efficiency	97.60%
European Weighted Efficiency	96.80%
Height	1960 mm
IP Rating	IP66
Max. Operating Altitude	<4000 mtr
Noise Level	<30 dB
MPPT Efficiency	99.90%
Number of MPPTs	2
Operating Temperature	-35 to 60 deg C
Phase	3 Phase
Relative Humidity	0-95%
Topology	Transformerless
Total Harmonic Distortion	<3%
Width	1189 mm
