Alpha Pure-R Series Solar Panel 410W 80 Half-Cut REC Bifacial Heterojunction Cells 49.4V 8.3A 25yr Power 20yr Product

Name: Solar Panel 410W 80 Half-Cut REC Bifacial 25yr Pwr 20yr Prd
SKU: REC410AAPURE-R
Availability: InStock

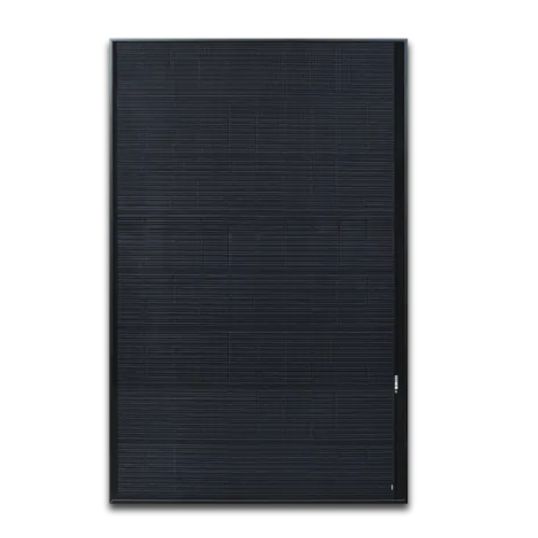

$REC_Solar\REC_REC410AAPURE-R.jpg$

Description

Solar Panel, 80 Half-Cut REC Bifacial, Heterojunction Cells with Lead-Free, Gapless Technology Cell, 80 Cell, 410 Watt Max. Power, 49.4 Volt Max. Voltage, 8.3 Amp Max. Current, 59.2 Volt Open Circuit Voltage, 8.84 Amp Short Circuit Current, 25 Amp Max. Fuse Current, 1000 Volt Max. System Voltage, 21.2% Efficiency, Stõubli MC4 PV-KBT4/KST4 (12 AWG) Connector, 12 AWG (4mm) PV Wire, 67 + 67 in (1.7 + 1.7 mtr) Output Cables, Junction Box: 4-Part, 4 Bypass Diodes, Lead-Free IP68 Rated, Anodised Aluminium (Black) Frame, 3.2mm Solar Glass with Anti-Reflective Surface Treatment,-0.24%/deg C Temperature Coefficient,-40 to 85 deg C, 21.5 kg

Key Specifications

SKU	REC410AAPURE-R
Brand	REC Solar
Range Name	Solar
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	33
UNSPSC Class	26111600
UOM	EA
Vendor Product	REC410AAPURE-R
Connector Type	Stõubli MC4 PV-KBT4/KST4 (12 AWG)
Cell Type	80 Half-Cut REC
Efficiency	21.2%
Frame Construction	Anodised Aluminium
Front Glass	3.2mm Solar Glass with Anti-Reflective Surface Treatment
Item Weight	21.5 kg
Junction Box	4-Part/4 Bypass Diodes/Lead-Free IP68 Rated
Max. System Voltage	1000 Volt
Max. Current	8.3 Amp
Max. Voltage	49.4 Volt
Max. Fuse Current	25 Amp
Number Of Cells	80
Open Circuit Voltage	59.2 Volt
Operating Temperature	-40 to 85 deg C
Short Circuit Current	8.84 Amp
Output Cables	12 AWG (4mm) PV Wire/67 + 67 in (1.7 + 1.7 mtr)
Temperature Coefficient	-0.24%/deg C
Wattage	410 Watt
