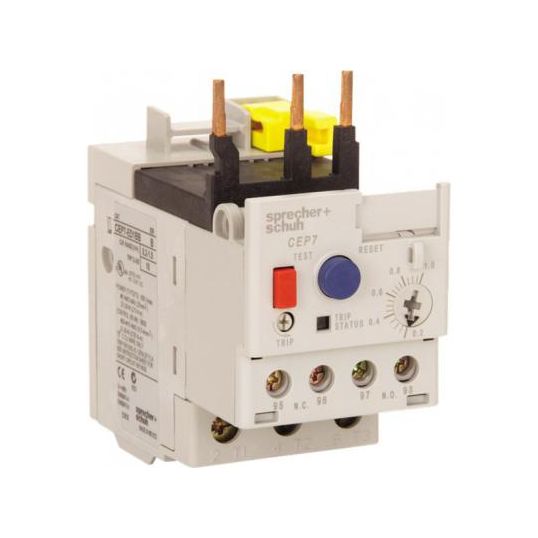

Sprecher+Schuh Electronic Overload Relay Standard 3.2-16A 690V 1NO-1NC Class 10 Manual Screw

$Sprecher\Sprecher_CEP7ED_EE.jpg$

Description

Electronic Overload Relay Standard, Setting Range From (Amp): 3.2, Setting Range To (Amp): 16, 690 Volt AC, 1NO+1NC, Class 10, Manual, Direct Mount, Screw Terminal, -20 to 60 deg C, 146.6 mm Height, 45 mm Width, 85.2 mm Depth, For Use With: CA7-9 To CA7-23 Contactors, Please Note: 3 Phase

Key Specifications

Barcode (EAN-13)	9321807223920
SKU	S&SCEP7-ED1DB
Brand	Sprecher+Schuh
Range Name	CEP7
Product Type	Contactor Overloads

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Wide current adjustment range (5:1) significantly reduces inventory requirements Extremely low heat generation results in cooler panels and switchboards Self-powered with no separate power supply connection required, for convenience Advanced phase failure detection (typically 3 seconds) for improved motor protection Low-voltage compatible contacts (17 volt, 5 mA)-ideal with PLC systems Includes trip and alarm contacts 1x N/C and 1x N/O for easy integration into your control circuit Unique latching mechanism and strengthened power connections provide greater mechanical connection with Sprecher + Schuh CA7 contactors for a more robust design
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	CEP7ED1DB
Control Type	Manual
Contact Configuration	1 Normally Opened & 1 Normally Closed
For Use With	CA7-9 To CA7-23 Contactors
Depth	85.2 mm
Height	146.6 mm
Please Note	3 Phase
Mounting Method	Direct Attachment
Operational Voltage	690 Volt AC
Setting Range To (Amp)	16.0
Setting Range From (Amp)	3.2
Temperature	-20 to 60 deg C
Terminal Connection	Screw
Trip Characteristic	Class 10
Width	45 mm
