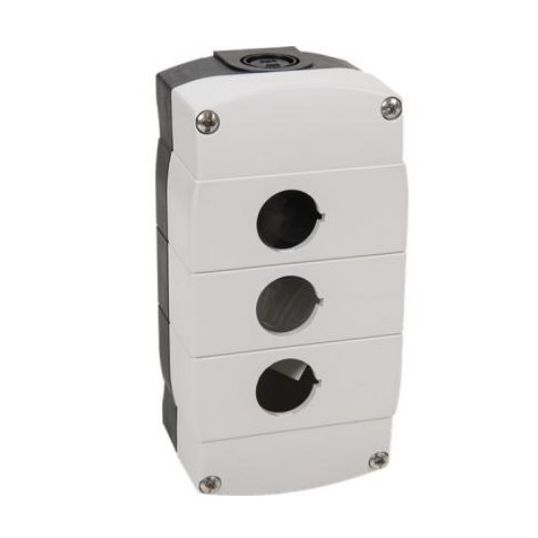

Sprecher+Schuh Enclosure For Pushbutton Control Stations 3x22.5 mm HoleGrey Plastic IP66

Description

Enclosure For Pushbutton Control Stations, Operator Openings: 3 x 22.5 mm, IP66, NEMA ICS-5, Polycarbonate and PBT Blend, Grey, 155 mm Height, 79 mm Width, 48 mm Depth, -25 to 70 deg C, Low Profile For Single Level Rear Elements

Key Specifications

Barcode (EAN-13)	9321807216328
SKU	S&SD7-3PM
Brand	Sprecher+Schuh
Range Name	D7
Product Type	Enclosures Pushbutton

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	D7 pilot devices offer maximum flexibility and a wide choice for all 22.5 mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations Aesthetically appealing and modularly designed to make assembly and interchangeability easy Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments D7P is a plastic operator with a captive black plastic front bezel. Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments Finished with corrosion resistant chrome plating, the D7M also features a captive shiny metal bezel for a polished appearance
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	D73PM
Colour	Grey
Depth	48 mm
Height	155 mm
Housing Material	Polycarbonate and PBT Blend
IP Rating	IP66
NEMA Rating	NEMA ICS-5
Operator Openings	3 x 22.5 mm
Please Note	Low Profile For Single Level Rear Elements
Width	79 mm
Temperature	-25 to 70 deg C
