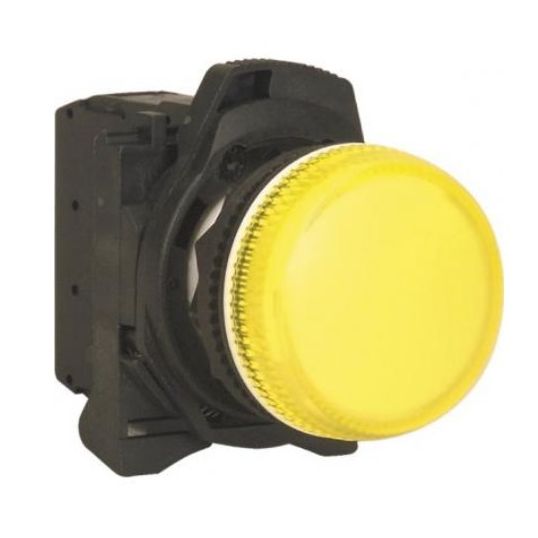

Sprecher+Schuh Pilot Indicator Complete Plastic Body 240V LED Yellow

Description

Pilot Indicator Complete Plastic Body, 240 Volt AC/DC, LED, Yellow, Screw Terminal, Panel Mount, IP65, IP66, NEMA ICS-5, Housing: Plastic, Bezel: Glass-Filled Nylon/PA6/PA66, Lens: POM/Acetal/Polyacetal/Polyformaldehyde, 29.6 mm Diameter, -25 to 70 deg C, LED Block

Key Specifications

Barcode (EAN-13)	9321807216441
SKU	S&SD7P-P5-PN7W
Brand	Sprecher+Schuh
Range Name	D7
Product Type	Pilot Indicators

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	D7 pilot devices offer maximum flexibility and a wide choice for all 22.5mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations Aesthetically appealing and modularly designed to make assembly and interchangeability easy Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments D7P is a plastic operator with a captive black plastic front bezel Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments D7M has a die-cast zinc housing and mounting ring for rugged durability Finished with corrosion resistant chrome plating, the D7M also features a captive shiny metal bezel for a polished appearance Polycarbonate and PBT Blend fixing collar material
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	D7PP5PN7W
Diameter	29.6 mm
Housing Material	Plastic
IP Rating	IP65/66
Lamp Colour	Yellow
Lamp Type	LED
Mounting Method	Panel
NEMA Rating	NEMA ICS-5
Please Note	LED Block
Temperature	-25 to 70 deg C
Terminal Connection	Screw
Voltage	240 Volt AC/DC
