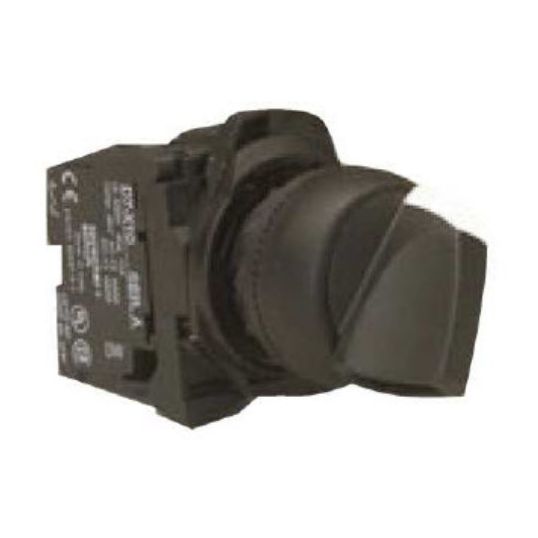

Rotary Selector Actuator 3 Position Plastic Body Non Illuminated Stayput/Latched/Maintained Black 22.5mm Panel Mount

Description

Rotary Selector Actuator, 2 Normally Opened Configuration, Knob Operator, Latched/Maintained/Non-Illuminated Momentary Action Operator Action, 300000 Cycles, 3 Position, Screw/Clamp Terminal, 1.7 Nm Tightening Torque, Panel Mounting, 22.5 mm Mounting Diameter, IP65/66, NEMA ICS-5, Silver Nickel (Ag/Ni) Contact, Black, -25 to 70 deg C, 29.8 mm Height, 27.9 mm Width

Key Specifications

Barcode (EAN-13)	9321807216199
SKU	S&SD7P-SM32-PX20
Brand	Sprecher+Schuh
Range Name	D7
Product Type	Selector Actuators Rotary

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	D7 pilot devices offer maximum flexibility and a wide choice for all 22.5 mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations Aesthetically appealing and modularly designed to make assembly and interchangeability easy Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments D7P is a plastic operator with a captive black plastic front bezel Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments D7M has a die-cast zinc housing and mounting ring for rugged durability Finished with corrosion resistant chrome plating, the D7M also features a captive shiny metal bezel for a polished appearance
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	D7PSM32PX20
Colour	Black
Contact Configuration	2 Normally Opened
Contact Material	Silver Nickel (Ag/Ni)
IP Rating	IP65/66
Height	29.8 mm
Mounting Diameter	22.5 mm
Mounting Method	Panel
NEMA Rating	NEMA ICS-5
Number of Positions	3
Operating Cycles	300000 Cycles
Operator Action	Latched/Maintained/Non-Illuminated Momentary Action
Operator Type	Knob
Temperature	-25 to 70 deg C
Terminal Connection	Screw/Clamp
Tightening Torque	1.7 Nm
Width	27.9 mm
