Sprecher+Schuh Cam Switch Isolator Switching 2P 12A AC21 Panel Mount

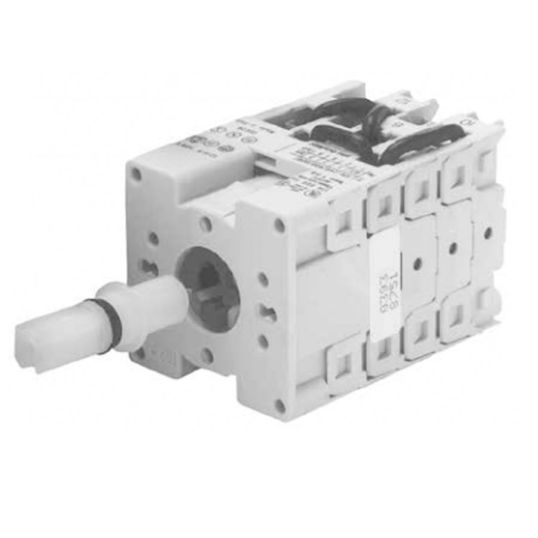

$Sprecher\Sprecher_Panel_Mount.jpg$

Description

Cam Switch Isolator Switching, AC21 Rating: 12 Amp at 690 Volt AC, 690 Volt AC, 50/60 Hz, 2 Pole, Stayput Action, 90 deg, Off/On, Isolator, Legend: OFF ON, Rotary Actuator, 18-12 AWG, Screw Terminal, Tightening Torque: 1 Nm, Mechanical Durability: 1200 Cycles/hr, Panel Mount, IP20, IP65, -25 to 60 deg C, 42 mm Height, 42 mm Width, 44 mm Depth

Key Specifications

Barcode (EAN-13)	9321807096883
SKU	S&SLE2-12-1782
Brand	Sprecher+Schuh
Range Name	L2
Product Type	Cam Switches Isolator

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Switch bodies with Touch-Proof terminals (IP 20) Long operational life and high reliability Positive switching action with clearly defined switching point All switch bodies are manufactured from self-extinguishing materials (corresponding to class UL 94 V0) Captive terminal screws already open for fast installation Robust screwdriver guide for easy wiring using manual or power screwdriver Clear terminal markings prevent wiring mistakes Easy access to switch terminals (angled screws) Switch handle assemblies available with either screw fixing or central nut mounting
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	LE2121782
AC21 Rating	12 Amp AC21 @ 690 Volt
Actuator	Rotary
Conductor Size	18-12 AWG
Connection Type	Screw
Frequency	50/60 Hz
Depth	44 mm
Height	42 mm
IP Rating	IP20/65
Mechanical Durability	1200 Cycles/hr
Legend	OFF ON
Mounting Method	Panel
Number Of Poles	2 Pole
Operation Type	Stayput
Switching Angle	90 deg
Temperature	-25 to 60 deg C
Switching Function	Off/On/Isolator
Width	42 mm
Tightening Torque	1 Nm
