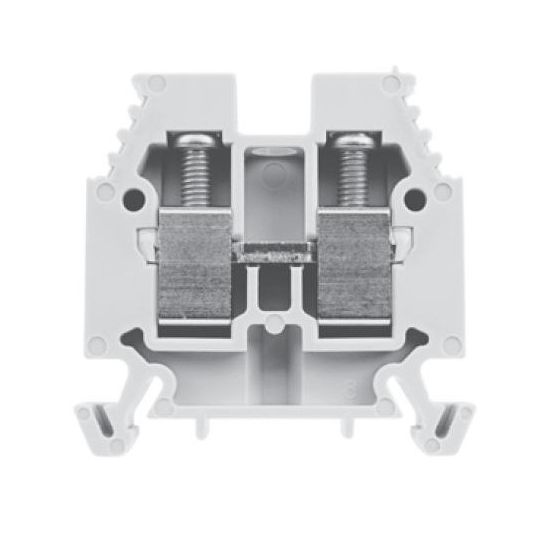

Sprecher+Schuh Rail Terminal Block Screwed 1 Wire 1 Level 10mm Blue

Description

Terminal Block, 10 mm, 2 Conductors, 800 Volt, 57 Amp, 13 mm Wire Strip Length, 1.4 Nm Tightening Torque, 1 Conductor Wiring Format, 2 Connection Points, 1 Level, Terminal Marking Position, Screw Terminal, Rail Mounting, Blue, 40 to 90 deg C, UL94 V0 Flammability, 47.6 mm Height, 41 mm Width, 8 mm Depth

Key Specifications

SKU	S&SV7-W10-B
Brand	Sprecher+Schuh
Range Name	V7-W
Product Type	Rail Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Designed for ease of wiring, secure connections and durability Comprehensive range, offering a wide array of terminal types for most circuits and functions Terminals accommodate a full range of wire sizes from 0.5 to 70 sq-mm wire cross section Cone shaped guide allows easy wire insertion Specialty terminals including two-level, grounding, diode, isolating, fuse, sensor and thermocouple terminals
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	V7W10B
Depth	8 mm
Conductor Size	10mm
Current Rating	57 Amp
Colour	Blue
Flammability	UL94 V0
Height	47.6 mm
Number of Connection Points	2
Mounting Method	Rail
Marking Position	Terminal
Number of Conductors	2
Number of Levels	1
Terminal Type	Screw
Tightening Torque	1.4 Nm
Temperature	40 to 90 deg C
Voltage Rating	800 Volt
Width	41 mm
Wire Strip Length	13 mm
Wiring Format	1 Conductor
