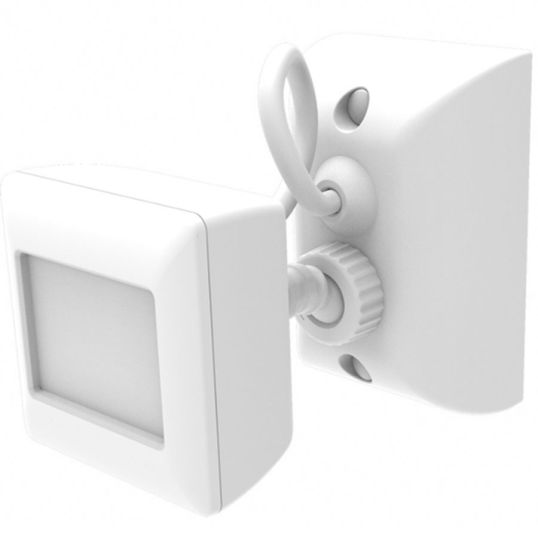

SAL Pixie Smart PIR Sensor Outoor Surface Mount 200W 110deg IP66 White

$SAL_Lighting\SAL_SMS862WF-WH-BTAM.JPG$

Description

PIR Sensor, 240 Volt, LED: 500 Watt/Halogen: 2000 Watt, 50 Hz, 12 mtr Sensing Range, 110 deg Sensing Beam, 1. 8-2.5 mtr Mounting Height, IP66, Surface Mounting, White, -10 to 40 deg C, 115 mm Diameter x 75 mm Height

Key Specifications

Barcode (EAN-13)	9328623130944
SKU	SALSMS862WF/WH/BTAM
Brand	SAL
Product Type	Sensors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Sensitivity, hold time and brightness threshold adjustment can be set via physical dials and via the PIXIE PLUS App Maximum loads (LED) 500 Watt, (halogen) 2000 Watt Additional PE cell mode Detection angle 110 deg up to 12 mtr at a height of 1.8-2.5 mtr (black model detection range 10 mtr) Simply use the App or PIXIE secondary device to switch among 4 working modes - motion sensor mode, override on and override off and PE cell mode 3-wire design for interior or exterior use in a choice of white or black
Standard Pack Size	1
UNSPSC Class	39121800
UOM	EA
Vendor Product	SMS862WF/WH/BTAM
Colour	White
Dimensions	115 mm Diameter x 75 mm Height
Frequency	50 Hz
IP Rating	IP66
Mounting Height	1. 8-2.5 mtr
Mounting Method	Surface
Sensing Beam	110 deg
Sensing Range	12 mtr
Temperature	-10 to 40 deg C
Voltage	240 Volt
Wattage	LED: 500 Watt / Halogen: 2000 Watt
