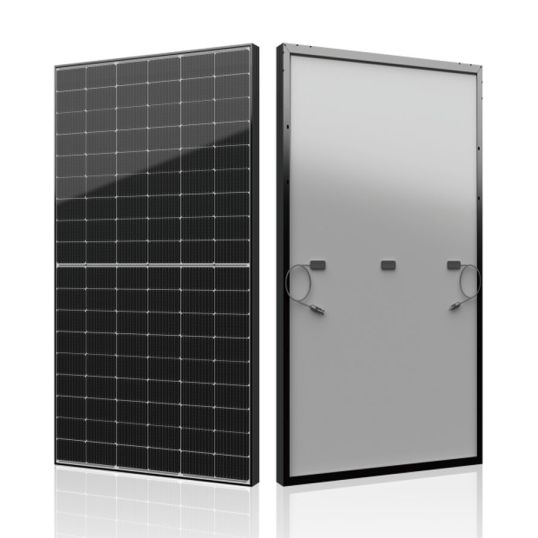

Seraphim SIV Series Solar Panel 415W 108 PERC Mono Cells MC4 Black Frame 28mm Length 25 Years Warranty

Description

Solar Panel, Monocrystalline PERC Cell, 108 Cell, 415 Watt, 31.16 Volt Max. Voltage, 13.32 Amp Max. Current, 37.42 Volt Open Circuit Voltage, 13.90 Amp Short Circuit Current, 25 Amp Max. Fuse Current, 1500 Volt DC Max. System Voltage, 21.25 nm Efficiency, 0-4.99 Watt Power Tolerance, MC4 Connector, 4 mm/250 mm(+)/350 mm(-) Output Cables, Junction Box: IP68/3 Diodes, Anodized Aluminium Frame, 3.2 mm AR Coating Tempered Glass/Low Iron, Pmax:-0.34% deg C/Voc:-0.26% deg C/Isc: +0.05%/ deg C Temperature Coefficient, -40 to 85 deg C, 28 mm Length, 1134 mm Width, 1722 mm Height, 19 kg

Key Specifications

SKU	SERSRP-415-BMD-HV
Brand	Seraphim
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	SRP-415-BMD-HV
Connector Type	MC4
Cell Type	Monocrystalline
Efficiency	21.25 nm
Frame Construction	Anodized Aluminium
Front Glass	3.2 mm AR Coating Tempered Glass/Low Iron
Height	1722 mm
Item Weight	19 kg
Junction Box	IP68/3 Diodes
Max. System Voltage	1500 Volt DC
Max. Current	13.32 Amp
Max. Voltage	31.16 Volt
Max. Fuse Current	25 Amp
Number Of Cells	108
Open Circuit Voltage	37.42 Volt
Operating Temperature	-40 to 85 deg C
Power Tolerance	0-4.99 Watt
Short Circuit Current	13.90 Amp
Output Cables	4 mm/250 mm(+)/350 mm(-)
Temperature Coefficient	Pmax:-0.34% deg C/Voc:-0.26% deg C/Isc: +0.05%/ deg C
Width	1134 mm
Wattage	415 Watt
