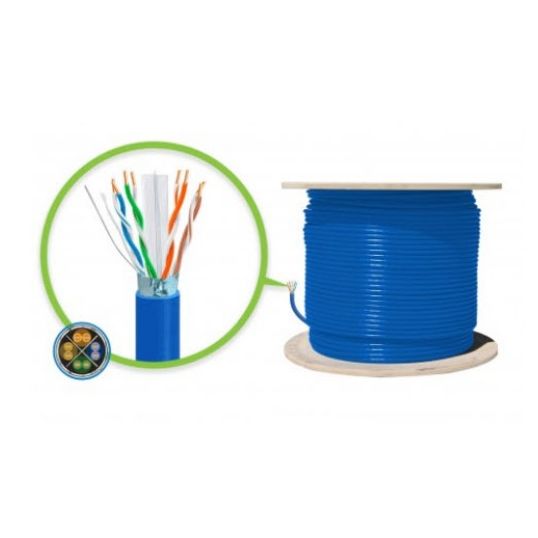

Serveredge F/UTP Network Cable Cat6A 4 Pair 23AWG HDPE/LSZH Blue 305M

$Serveredge\Serveredge_C6AFUTSL305-BU.jpg$

Description

Serveredge CAT 6A 305 mtr UTP Solid Network Cable can be used to connect a variety of devices in a high-speed network. The cable is twisted in four pairs and protected by a PVC jacket. It is packaged in an easy to use pull box carton. The cable is made from the highest quality copper to maximize performance and minimize Near-End Crosstalk (NEXT)..

Key Specifications

Barcode (EAN-13)	9352399000002
SKU	SEVC6AFUTSL305-BU
Brand	Serveredge

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	ISO/IEC 11801 Ed. 2.2 (Class EA) IEC 61156-5:2009 (CAT 6A) ANSI/TIA-568-C.2 (CAT 6A) Supports all applications designed to operate over CAT 6A or lower rated systems Sequential measurement markings on jacket Easy and effective to use pull box packaging
Standard Pack Size	1
UNSPSC Class	26121600
UOM	EA
Vendor Product	C6AFUTSL305-BU
Cable Type	Cat 6A F/UTP
Conductor Material	Annealed Bare Copper
Conductor Size	23 AWG
Conductor Resistance	<=9.38 Ohm/100m
Conductor Type	Solid
Frequency Bandwidth	500 MHz
Insulation Material	HDPE
Insulation Thickness	0.22 mm
Insulation Resistance	<=5000 MOhm
Pair Count	4 Pair
Sheath Colour	Blue
Sheath Material	LSZH
Sheath Thickness	0.5 mm
