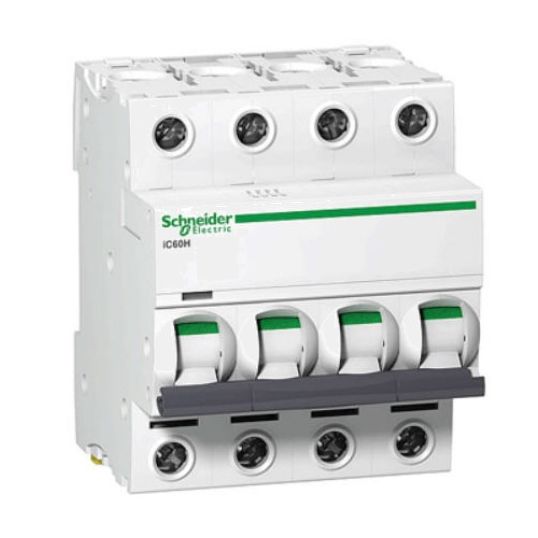

Schneider Miniature Circuit Breaker B Curve 32Amp 10 kA 4Pole 4Module 72mm DIN Rail/Clip-On Mount

Description

Miniature Circuit Breaker B Curve, 440 Volt AC, 32 Amp, 50/60 Hz, Interrupt Capacity: 10 kA, Number of Modules: 4, 72mm Module Width, Number of Poles: 4, Trip Characteristic: B Curve, Toggle Actuator, 3.5 N/m Top/Bottom Tightening Torque, Single Terminal, IP20 Conforming to IEC 60529, 10000 Cycles, 1 to 25 mm Flexible, 1 to 35 mm Rigid Cable, DIN Rail, Clip-On, White,-35 to 70 deg C, 85mm Height, 72mm Width, 78.5mm Depth

Key Specifications

Barcode (EAN-13)	3606480514647
SKU	SHNA9F53432
Brand	Schneider
Range Name	Acti 9 iC60H
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	A9F53432
Actuator Type	Toggle
Cable Size	1-25 sq-mm Flexible / 1-35 sq-mm Rigid
Colour	White
Current	32 Amp
Depth	78.5 mm
Electrical Life	10000 Cycles
Frequency	50/60 Hz
Height	85 mm
Interrupt Capacity	10 kA
IP Rating	IP20
Modules	4 Module 72mm
Mounting Method	DIN Rail/Clip-On
Number Of Poles	4 Pole
Temperature	-35 to 70 deg C
Terminal Type	Single
Tightening Torque	3.5 Nm Top/Bottom
Voltage	440 Volt
Width	72 mm
