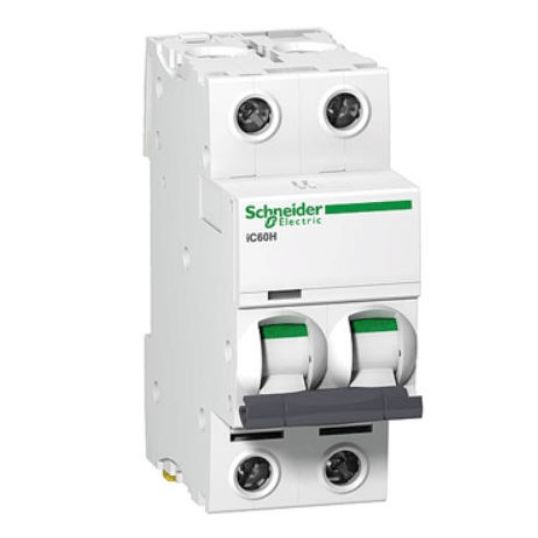

Schneider Miniature Circuit Breaker D Curve 6Amp 10kA 2Pole 2Module DIN 35mm Rail Mount

$Schneider\Schneider_Acti_9_iC60_2P.jpg$

Description

Miniature Circuit Breaker D Curve, 440 Volt AC, 6 Amp, 50/60 Hz, Interrupt Capacity: 10 kA, Number of Modules: 2, 36mm Module Width, Number of Poles: 2, Trip Characteristic: D Curve, Toggle Actuator, 2 N/m Top/Bottom Tightening Torque, Single Terminal, IP20 Conforming to IEC 60529, 10000 Cycles, 1 to 16 mm Flexible, 1 to 25 mm Rigid Cable, DIN 35mm Rail, White,-35 to 70 deg C, 85mm Height x 36mm Width x 78.5mm Depth

Key Specifications

Barcode (EAN-13)	3606480515316
SKU	SHNA9F55206
Brand	Schneider
Range Name	Acti 9 iC60H
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	A9F55206
Actuator Type	Toggle
Cable Size	1-16 sq-mm Flexible / 1-25 sq-mm Rigid
Colour	White
Current	6 Amp
Depth	78.5 mm
Frequency	50/60 Hz
Height	85 mm
Interrupt Capacity	10 kA
IP Rating	IP20
Modules	2 Module 36mm
Mounting Method	DIN Rail
Number Of Poles	2 Pole
Temperature	-35 to 70 deg C
Terminal Type	Single
Tightening Torque	2 Nm Top/Bottom
Voltage	440 Volt
Width	36 mm
