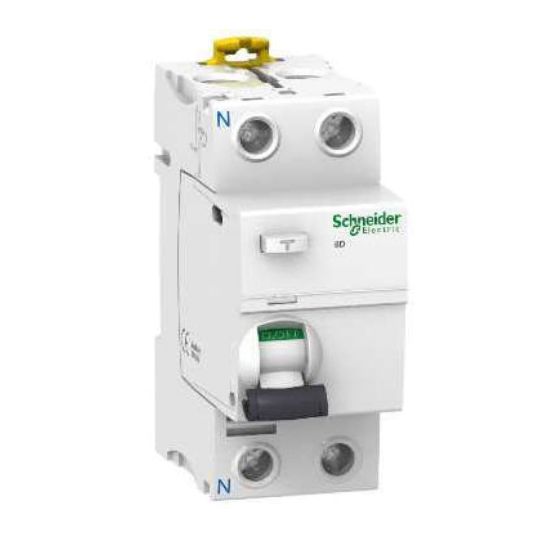

Schneider Safety Switch RCCB Instantaneous 2Pole 100A 220-240VAC 10kA 300mA 4Module 72mm DIN Rail Clip-on Mount

$Schneider\Schneider_A9R_2P.jpg$

Description

Safety Switch RCCB Instantaneous Type, 220-240 Volt AC, 100 Amp, 50/60 Hz, 10 kA Interrupt Capacity, 300 mA Trip Sensitivity, 4 Modules, 72mm Module Width, 2 Poles, Single Terminal, IP20 Conforming to IEC 60529, IP40 Conforming to IEC 60529, DIN Rail, Clip-on, 10000 Cycles, 20000 Cycles Mechanical Durability, 1-25 mm Flexible, 1-35 mm Rigid Conductor, 3.5 N/m Top/Bottom Tightening Torque, White,-25 to 60 deg C, 91mm Height x 36mm Width x 73.5mm Depth

Key Specifications

Barcode (EAN-13)	3606480945144
SKU	SHNA9R25291
Brand	Schneider
Range Name	Acti 9 i1D
Product Type	Safety Switches RCCB

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	A9R25291
Current	100 Amp
Conductor Size	1-25 sq-mm Flexible - 1-35 sq-mm Rigid
Current	100 Amp
Electrical Life	10000 Cycles
Depth	73.5 mm
Frequency	50/60 Hz
Height	91 mm
Interrupt Capacity	10 kA
Modules	4 Module 72 mm
Mechanical Durability	20000 Cycles
Number Of Poles	2 Pole
IP Rating	IP20/40
Mounting Method	DIN Rail/Clip-on
Temperature	-25 to 60 deg C
Terminal Type	Single
Tightening Torque	3.5 Nm Top/Bottom
Voltage	220-240 Volt
Trip Sensitivity	300 mA
Width	36 mm
