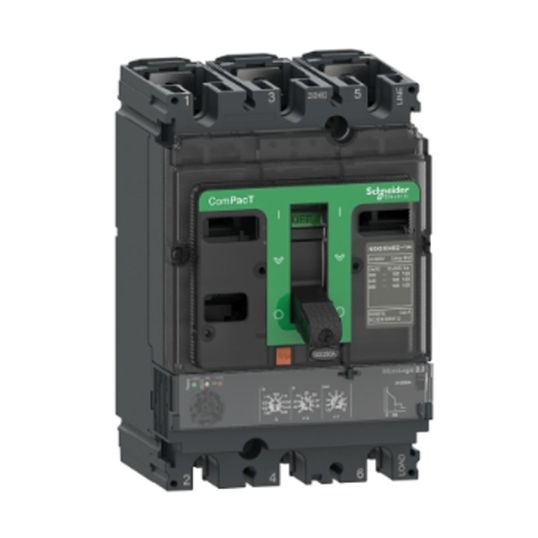

Schneider ComPact NSX100H Circuit Breaker 70kA 3 Pole 3D 100A MicroLogic 2.2 Trip Unit
Loading...
Description
Circuit Breaker, 690 Volt AC, 100 Amp, 50/60 Hz, 70 kA Interrupt Capacity, 3 Pole, MicroLogic 2.2, IP40, -25 to 70 deg C, 105mm Width x 161mm Height x 86mm Depth
Key Specifications
| SKU |
SHNC10H32D100
|
|---|---|
| Brand |
Schneider
|
| Range Name |
Compact NSX100H
|
| Product Type |
MCCBs
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | C10H32D100 |
| Current | 100 Amp |
| Frequency | 50/60 Hz |
| IP Rating | IP40 |
| Interrupt Capacity | 70 kA |
| Number Of Poles | 3 Pole |
| Temperature | -25 to 70 deg C |
| Trip Type | MicroLogic 2.2 |
| Voltage | 690 Volt |
