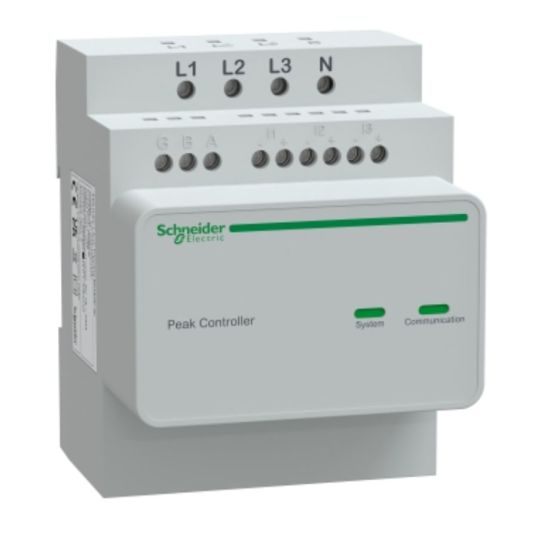

Schneider Universal Peak Anti-Tripping Module 5W 220-230V 16-50A 3Ph 50/60Hz 0-2000m PLC -30 to 50deg C -40 to 85deg C

$Schneider\Schneider_EVA1HPC3.JPG$

Description

This EVlink Home accessory is a load-shedder used as an anti-tripping system to complement the charging station. It is used in three-phase network. It allows to adjust in real time the maximum power allocated to the charging electric vehicle, according to the consumption of the rest of loads in the house. The dimensions are (W) 72 mm x (H) 89 mm x (D) 75 mm. Its product weight is 180 g. Its color is white. It is made of plastic.

Key Specifications

Barcode (EAN-13)	3606482116429
SKU	SHNEVA1HPC3
Brand	Schneider
Range Name	Evlink

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Power load management - avoid any disruption in the power supply and manage available power efficiently Budget-friendly and easy to install - EVlink is an affordable and easy to install solution Certified and aesthetic - compliant with strict safety certifications Peace of mind - worldwide customer care center
Standard Pack Size	1
UNSPSC Class	25175000
UOM	EA
Vendor Product	EVA1HPC3
Certifications	IEC / EN
Communication Port	PLC
Depth	75 mm
Height	72 mm
Input Frequency	50/60 Hz
Item Weight	180 g
Max. Operating Altitude	0-2000 mtr
Operating Temperature	-30 to 50 deg C
Phase	3 Phase
Power Output	5 Watt
Relative Humidity	5-95%
Standards	EN 61010-1:2010 / EN 61326-1:2013
Storage Temperature	-40 to 85 deg C
Width	89 mm
