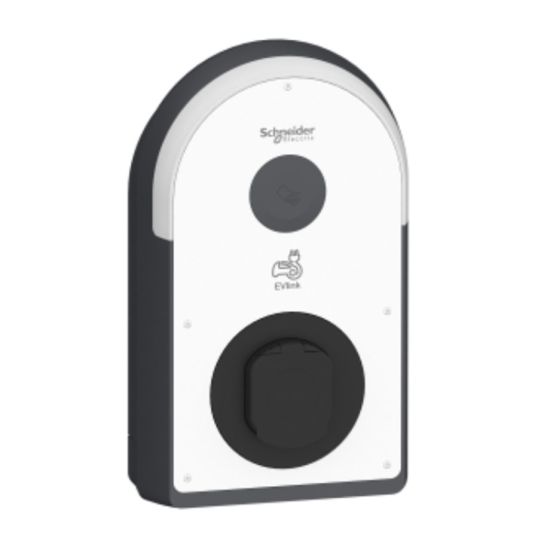

Schneider EVlink Pro AC Charging Station 22kW 32A 3 Pole+N T2S Socket-Outlet RDC-DD 6mA MNx Auxillary

$Schneider\Schneider_EVB3S22N4.JPG$

Description

Charging Station, 380-415 Volt AC Input Voltage, 380-415 Volt AC Output Voltage, 32 Amp Output Current, 50/60 Hz Input Frequency, 22 kW Power Output, 2000 mtr Without Derating Max. Altitude, OCPP 1.6, Ethernet, Bluetooth, 3G/4G Modem Optional, Modbus TCP, 2 RJ45 For Ethernet LAN Connector, IP55, IK10, -30 to 50 deg C, -40 to 80 deg C Storage Temperature, 5-95% Relative Humidity, EV Ready, CE, EN/IEC 61851-1:ed. 3, EN/IEC 62196-1:ed. 2, EN/IEC 62196-2:ed. 1, 529mm Height, 317mm Width, 153mm Depth, 7.2 kg

Key Specifications

Barcode (EAN-13)	3606482213135
SKU	SHNEVB3S22N4
Brand	Schneider
Range Name	Evlink
Product Type	AC Charging Station

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	25175000
UOM	EA
Vendor Product	EVB3S22N4
Certifications	EV Ready/CE
Communication Protocol	OCPP 1.6
Communication Port	Ethernet/Bluetooth/3G-4G Modem Optional/Modbus TCP
Connector Type	2 RJ45
Depth	153 mm
IK Rating	IK10
Height	529 mm
Input Voltage	380-415 Volt
Input Frequency	50/60 Hz
IP Rating	IP55
Item Weight	7.2 kg
Max. Operating Altitude	2000 mtr Without Derating
Output Voltage	380-415 Volt
Operating Temperature	-30 to 50 deg C
Output Current	32 Amp
Relative Humidity	5-95%
Power Output	22 kW
Standards	EN/IEC 61851-1:ed. 3 EN/IEC 62196-1:ed. 2 EN/IEC 62196-2:ed. 1
Storage Temperature	-40 to 80 deg C
Width	317 mm
