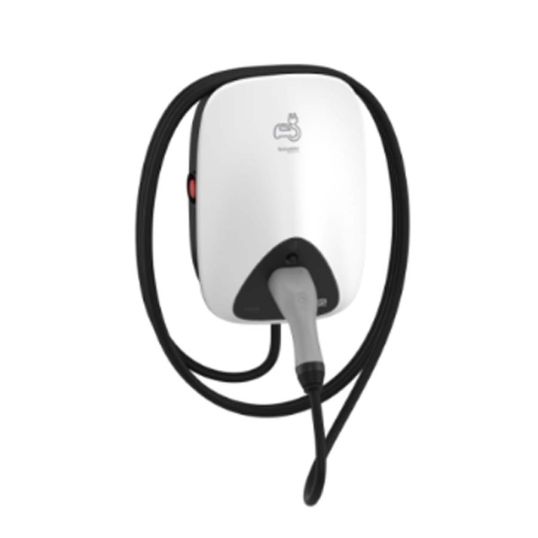

Schneider Evlink Home Charging station 400V 11kW 3 Pole+N with RDC-DD 5m Attached Cable

$Schneider\Schneider_EVH4S11NC.jpg$

Description

Home Charging station, 400 Volt AC Input Voltage, 16 Amp Input Current, 50 Hz +/-10 % Input Frequency, 11 kW Power Output, 0-2000 mtr Max. Altitude, Attached Cable T2 Bottom and Top Centre of Enclosure 5 m Connector, 5 mtr Cord Length, IP55, IK10,-30 to 50 deg C,-40 to 85 deg C Storage Temperature, 5-95% Relative Humidity, EN 61851, IEC 61851-1, EN 61000-6-1, EN 61000-6-3, 409mm Height, 282mm Width, 148mm Depth, 5.6 kg

Key Specifications

Barcode (EAN-13)	3606482107359
SKU	SHNEVH4S11NC
Brand	Schneider
Range Name	Evlink
Product Type	Home Charging Station

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	EVH4S11NC
Connector Type	Attached Cable T2 Bottom and Top Centre of Enclosure 5 m
Cord Length	5 mtr
Depth	148 mm
Height	409 mm
Input Current	16 Amp
IK Rating	IK10
Input Frequency	50 Hz +/-10 %
Input Voltage	400 Volt
IP Rating	IP55
Max. Operating Altitude	0-2000 mtr
Item Weight	5.6 kg
Operating Temperature	-30 to 50 deg C
Power Output	11 kW
Relative Humidity	5-95%
Standards	EN 61851 IEC 61851-1 EN 61000-6-1 EN 61000-6-3
Storage Temperature	-40 to 85 deg C
Width	282 mm
