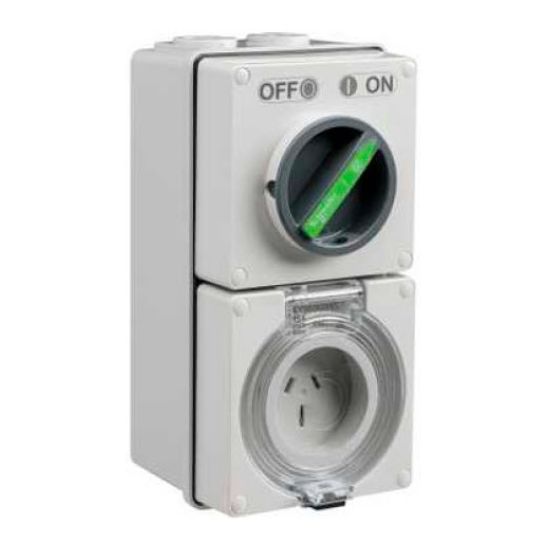

Schneider Switch Socket Outlet Surface Mounting Weatherproof 1Ph 15A 250V 3 Pin Flat Grey IP66

Description

Switched Socket Outlet Weatherproof, 250 Volt, 15 Amp, 50 Hz, 1 Phase Phase, 1 Pole, 3 Pin Flat (1 + Neutral + Earth), Screw Connection, 2xM25/1xM32 Conduit Entry, 1.5-6 sq-mm Terminal Capacity, Surface Mounting, IP66, Polycarbonate, Grey, -25 to 75 deg C, 203 mm Height, 101 mm Width, 101 mm Depth

Key Specifications

Barcode (EAN-13)	9311554782702
SKU	SHNEY56C315
Brand	Schneider
Range Name	Easy56
Product Type	Switch Sockets

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Spring loaded socket flap with latch for added safety coverage Padlocking facility (8 mm) in off position 316 Stainless Steel cover mounting screws
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	EY56C315
Colour	Grey
Conduit Entry	2xM25/1xM32
Connection Type	Screw
Current	15 Amp
Depth	101 mm
Frequency	50 Hz
Height	203 mm
IP Rating	IP66
Material	Polycarbonate
Mounting Method	Surface
Number Of Poles	1 Pole
Phase	1 Phase
Pin Configuration	3 Pin Flat (1 + Neutral + Earth)
Temperature	-25 to 75 deg C
Terminal Capacity	1.5-6 sq-mm
Voltage	250 Volt
Width	101 mm
