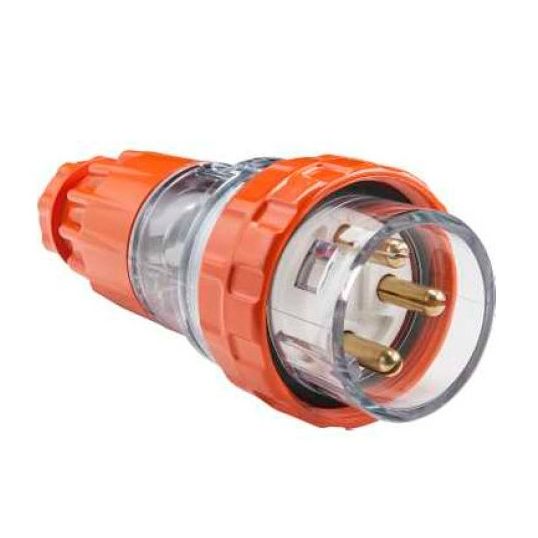

Schneider Plug Straight Body Weatherproof 1Ph 32A 250V 3 Pin Round Tubular Orange IP66

$Schneider\Schneider_EY56P332.jpg$

Description

Plug Straight Weatherproof, 250 Volt, 32 Amp, Straight Angle, 1 Phase Phase, 3 Pin Tubular, Screw Connection, 4-16 sq-mm Terminal Capacity, Cable Gland Cable Entry, 11-29.5 sq-mm Cable Nominal Diameter, IP66, Polycarbonate, Clear Body/Orange Plug, -25 to 75 deg C, 78 mm Height, 78 mm Width, 176 mm Depth

Key Specifications

Barcode (EAN-13)	9311554782443
SKU	SHNEY56P332
Brand	Schneider
Range Name	Easy56
Product Type	Plugs Straight

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Locking rings to ensure IP66 rating Transparent body to view cable connections Transparent pin surround to view pins during plug insertion/removal
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	EY56P332
Colour	Clear Body/Orange Plug
IP Rating	IP66
Connection Type	Screw
Material	Polycarbonate
Pin Configuration	3 Pin Tubular
Height	78 mm
Width	78 mm
Current	32 Amp
Depth	176 mm
Temperature	-25 to 75 deg C
Terminal Capacity	4-16 sq-mm
Cable Nominal Diameter	11-29.5 sq-mm
Phase	1 Phase
Angle	Straight
Voltage	250 Volt
Cable Entry	Cable Gland
