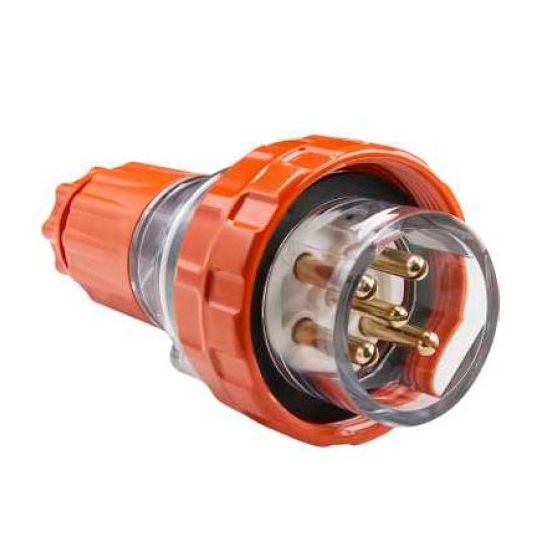

Schneider Plug Straight Body Weatherproof 3Ph 20A 500V 5 Pin Round Tubular Orange IP66

Description

Plug Straight Weatherproof, 500 Volt, 20 Amp AC1, Straight Angle, 3 Phase Phase, 5 Pin Tubular, Screw Connection, 1-4 sq-mm Terminal Capacity, Cable Gland Cable Entry, 7-16 mm Cable Nominal Diameter, IP66, Polycarbonate, Clear Body/Orange Plug, -25 to 75 deg C, 78 mm Height, 78 mm Width, 152 mm Depth

Key Specifications

Barcode (EAN-13)	9311554782511
SKU	SHNEY56P520
Brand	Schneider
Range Name	Easy56
Product Type	Plugs Straight

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Locking rings to ensure IP66 rating Transparent body to view cable connections Transparent pin surround to view pins during plug insertion/removal
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	EY56P520
Angle	Straight
Cable Nominal Diameter	7-16 mm
Cable Entry	Cable Gland
Colour	Clear Body/Orange Plug
Connection Type	Screw
Depth	152 mm
Height	78 mm
IP Rating	IP66
Material	Polycarbonate
Pin Configuration	5 Pin Tubular
Phase	3 Phase
Terminal Capacity	1-4 sq-mm
Temperature	-25 to 75 deg C
Voltage	500 Volt
Width	78 mm
