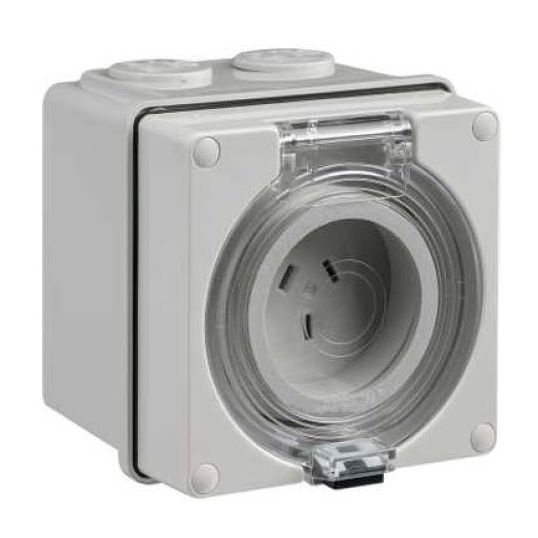

Schneider Socket Outlet Surface Mounting Weatherproof 1Ph 10A 250V 3 Pin Flat Grey IP66
Loading...
Description
Socket Outlet Weatherproof, 250 Volt, 10 Amp, 50 Hz, 1 Phase Phase, 3 Pin Flat (1 + Neutral + Earth), Screw Connection, 1.5-6 sq-mm Terminal Capacity, Surface Mounting, IP66, Polycarbonate, Grey, -25 to 75 deg C, 101 mm Height, 101 mm Width, 101 mm Depth
Key Specifications
| Barcode (EAN-13) |
9311554782863
|
|---|---|
| SKU |
SHNEY56SO310
|
| Brand |
Schneider
|
| Range Name |
Easy56
|
| Product Type |
Socket Outlets
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | EY56SO310 |
| Colour | Grey |
| Connection Type | Screw |
| Current | 10 Amp |
| Depth | 101 mm |
| Frequency | 50 Hz |
| Height | 101 mm |
| IP Rating | IP66 |
| Material | Polycarbonate |
| Mounting Method | Surface |
| Phase | 1 Phase |
| Pin Configuration | 3 Pin Flat (1 + Neutral + Earth) |
| Temperature | -25 to 75 deg C |
| Terminal Capacity | 1.5-6 sq-mm |
| Voltage | 250 Volt |
| Width | 101 mm |
