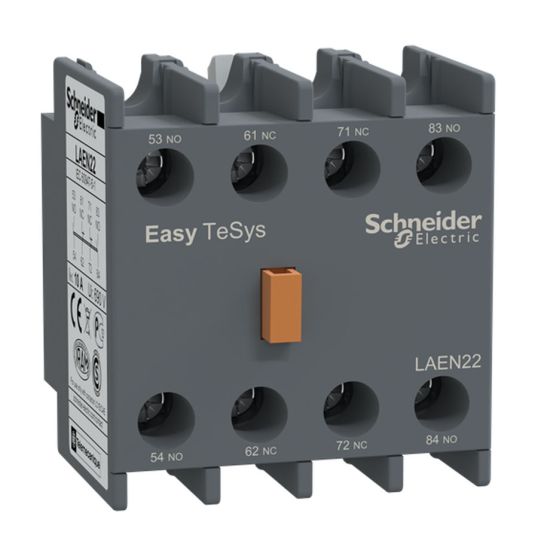

Schneider Auxiliary Contact Block 4P 10A 690VAC 2NO-2NC IP20 Screw

$Schneider\Schneider_LAEN22.JPG$

Description

Add-on auxiliary contact block for EasyPact TVS LC1E contactors. It provides 2NO-2NC instantaneous contacts rated up to 10 Amp 690 Volt AC, connected by screw clamps terminals. It can be used in safety applications thanks to its NC certified mirror contacts. Easy to mount on front by clip-on, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach).

Key Specifications

Barcode (EAN-13)	3606480325281
SKU	SHNLAEN22
Brand	Schneider
Product Type	Contactor Sundries

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LAEN22
For Use With	EasyPact TVS LC1E Contactors
Contact Configuration	2 Normally Opened & 2 Normally Closed
IP Rating	IP20
Switching Voltage	17 Volt
Number Of Poles	4 Pole
Operational Current	10 Amp
Operational Voltage	690 Volt AC
Switching Current	5 mA
Mounting Method	Front
Temperature	-5 to 55 deg C
Terminal Connection	Screw
