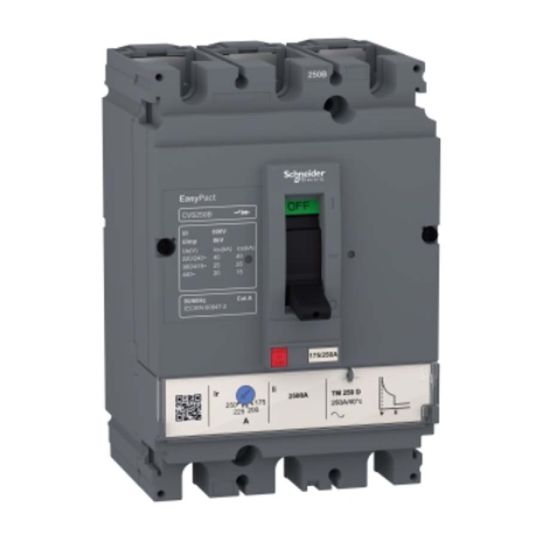

Schneider EasyPact CVS Circuit Breaker CVS250B TM200D 3P3D 200A
Loading...
Description
Circuit Breaker, 200 Amp, 50/60 Hz, 40/25/20 kA Interrupt Capacity, 3 Pole, Thermal Magnetic, Screw Terminal, IP40, -25 to 70 deg C, 105mm Width x 161mm Height x 86mm Depth
Key Specifications
| SKU |
SHNLV525305
|
|---|---|
| Brand |
Schneider
|
| Range Name |
EasyPact CVS
|
| Product Type |
MCCBs
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | LV525305 |
| Current | 200 Amp |
| Frequency | 50/60 Hz |
| IP Rating | IP40 |
| Interrupt Capacity | 40/25/20 kA |
| Number Of Poles | 3 Pole |
| Temperature | -25 to 70 deg C |
| Terminal Type | Screw |
| Trip Type | Thermal Magnetic |
