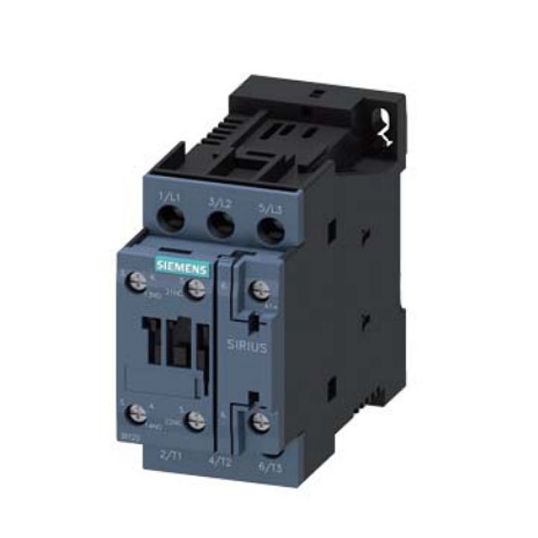

Siemens SIRIUS 3RT Contactor 3 Pole 7.5KW 17A AC3 40A AC1 24VDC Coil 1 Normaly Open and 1 Normaly Closed DIN Rail Mount

$Siemens\Siemens_3RT20251BB40.jpg$

Description

Contactor, 24 Volt DC Operating Coil, 690 Volt Contact, 1NO+1NC, AC3 Rating (kW): 7.5 kW, AC3 Rating (Amps): 17 Amp, AC1 Rating (Amps): 40 Amp, 3 Pole, Screw Terminal, IP20, DIN Rail Mounting, -25 to 60 deg C, 85 mm Height, 45 mm Width, 107 mm Depth

Key Specifications

Barcode (EAN-13)	4011209832459
SKU	SIE3RT2025-1BB40
Brand	Siemens
Range Name	Sirius 3R
Product Type	Contactors General

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	3RT2025-1BB40
AC1 Rating (Amps)	40 Amp AC1
AC3 Rating (Amps)	17 Amp AC3
AC3 Rating (kW)	7.5 kW
Contact Configuration	1 Normally Opened & 1 Normally Closed Aux
Depth	107 mm
Height	85 mm
Mounting Method	DIN Rail
Number Of Poles	3 Pole
Temperature	-25 to 60 deg C
Terminal Connection	Screw
Width	45 mm
