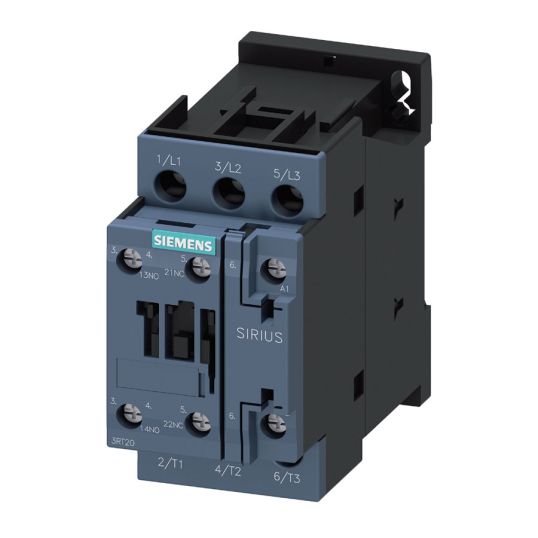

Siemens Sirius 3R Contactor Power 11kW 25A 24VDC 1NO+1NC 3 Pole Size S0 Screw Connection IP20

$Siemens\Siemens_3RT2026-1BB40.jpg$

Description

Contactor Power, 690 Volt Coil Voltage, 24 Volt DC Control Circuit, 400 Volt Contact Voltage, 1 Normally Opened/1 Normally Closed Configuration, 11 kW AC3 AC3 Rating, 25 Amp AC3 AC3 Rating, 40 Amp AC1 AC1 Rating, 3 Pole, Screw Terminal, Screw/Snap On Mounting, IP20, -25 to 60 deg C, 85 mm Height, 45 mm Width, 107 mm Depth, Size:S0

Key Specifications

Barcode (EAN-13)	4011209790131
SKU	SIE3RT2026-1BB40
Brand	Siemens
Range Name	Sirius 3R
Product Type	Contactors General

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	3RT2026-1BB40
AC1 Rating (Amps)	40 Amp AC1
AC3 Rating (Amps)	25 Amp AC3
AC3 Rating (kW)	11 kW AC3
Contact Configuration	1 Normally Opened & 1 Normally Closed
Contact Voltage	400 Volt
Control Circuit Voltage	24 Volt DC
Depth	107 mm
Height	85 mm
IP Rating	IP20
Mounting Method	Screw/Snap On
Number Of Poles	3 Pole
Operating Coil Voltage	690 Volt
Please Note	Size:S0
Temperature	-25 to 60 deg C
Terminal Connection	Screw
Width	45 mm
