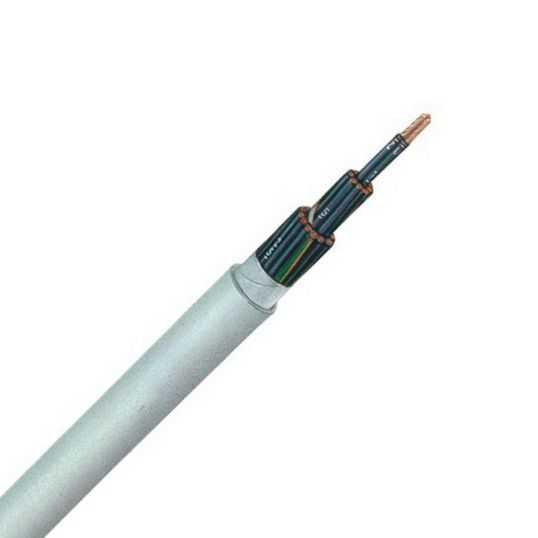

Siemens Protoflex Flexible Control Cable Unscreened 11 Core & Earth 0.75mm 0.3/0.5kV Copper PVC/PVC Grey

Description

Flexible Control Cable, 0.75 mm, Stranded Copper, 0.3-0.5 kV, 11 Core + Earth, 24/0.2 mm Strands, 10 mm Overall Diameter, Static 40 mm Flexible 75 mm Bend Radius, Static 50 N/mm Flexible 15 N/mm Tensile Strength, Black/Green/Yellow Core, V-75 PVC Insulation, PVC Sheath, Grey Sheath, Static -40 to 70 deg C Flexible -5 to 70 deg C, DIN VDE 7042 DIN VDE 047 IEC 033-1-2 AS 5000 DIN VDE 0281-13

Key Specifications

SKU	SIE5DE7045
Brand	Siemens
Range Name	Protoflex
Product Type	Flexible Control Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	5DE7045
Bend Radius	Static 40 mm - Flexible 75 mm
Conductor Size	0.75 mm
Conductor Type	Stranded Copper
Core Colours	Black/Green/Yellow
Insulation Material	V-75 PVC
Number of Cores	11 Core + Earth
Overall Diameter	10 mm
Sheath Colour	Grey
Sheath Material	PVC
Standards	DIN VDE 7042 DIN VDE 047 IEC 033-1-2 AS 5000 DIN VDE 0281-13
Stranding	24/0.2 mm
Tensile Strength	Static 50 Nm - Flexible 15 Nm
Temperature	Static -40 to 70 deg C Flexible -5 to 70 deg C
Voltage	0.3-0.5 kV
