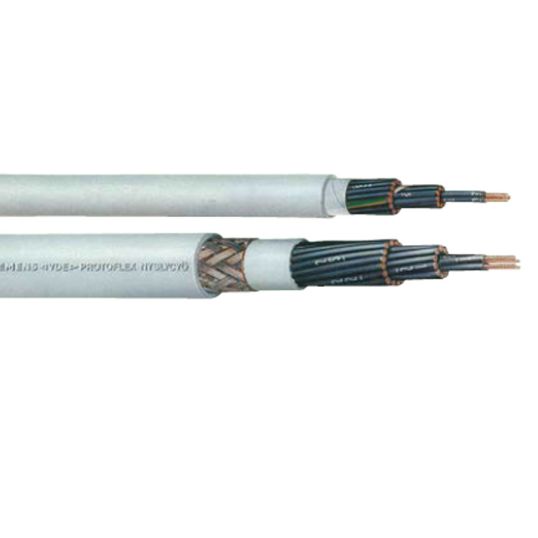

Siemens Protoflex Flexible Control Cable Unscreened 18 Core 0.75mm Copper 300/500V V-75 PVC/PVC Grey

$Siemens\Siemens_Control_Flex.jpg$

Description

Flexible Control Cable, 0.75 mm, Stranded Copper, 300-500 Volt, 18 Core, 24/0.2 mm Strands, 12 mm Overall Diameter, Static 48 mm Flexible 90 mm Bend Radius, Static 50 N/mm Flexible 15 N/mm Tensile Strength, Black/Green/Yellow Core, V-75 PVC Insulation, PVC Sheath, Grey Sheath, Static -40 to 70 deg C Flexible -5 to 70 deg C, DIN VDE 7042 DIN VDE 047 IEC 033-1-2 AS 5000 DIN VDE 0281-13

Key Specifications

SKU	SIE5DE7050
Brand	Siemens
Product Type	Flexible Control Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	5DE7050
Bend Radius	Static 48 mm - Flexible 90 mm
Conductor Size	0.75 mm
Conductor Type	Stranded Copper
Core Colours	Black/Green/Yellow
Insulation Material	V-75 PVC
Number of Cores	18 Core
Overall Diameter	12 mm
Sheath Colour	Grey
Sheath Material	PVC
Standards	DIN VDE 7042 DIN VDE 047 IEC 033-1-2 AS 5000 DIN VDE 0281-13
Stranding	24/0.2 mm
Tensile Strength	Static 50 Nm - Flexible 15 Nm
Temperature	Static -40 to 70 deg C Flexible -5 to 70 deg C
Voltage	300-500 Volt
