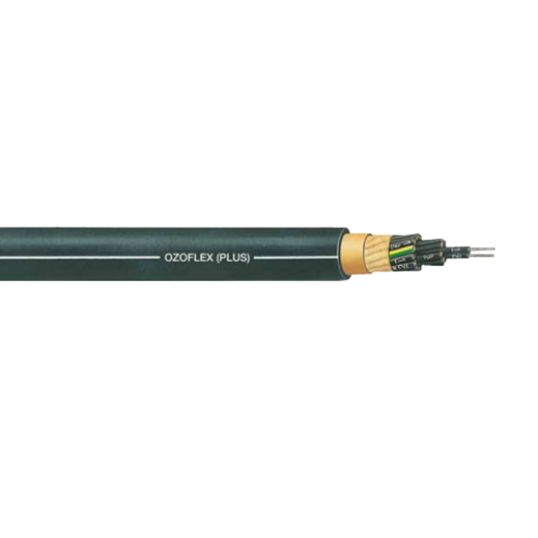

Siemens Ozoflex Plus Flexible: Cable Submersible 3 Core & Earth 10mm Copper 0.6/1kV R-EP-90/CPE Black

Description

Flexible: Cable Submersible 3 Core & Earth, 10 mm, Stranded Copper, 0.6/1 kV, 3 Core & Earth, 78/0.41 mm Strands, 22.2 mm Overall Diameter, Static 88.8 mm; Flexible: 111 mm Bend Radius, Tensile Strength: 15 N/mm, R-EP-90 Elastomer Insulation, Heavy Duty CPE Elastomer Sheath, Brown Black Grey Green/Yellow Cores, Black Sheath, 90 deg C, AS 1125, AS 3191, AS/NZS 5000-1

Key Specifications

SKU	SIE5DH1025
Brand	Siemens
Range Name	Ozoflex
Product Type	Submersible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	5DH1025
Bend Radius	Static 88.8 mm/Flexible 111 mm
Conductor Size	10 mm
Conductor Type	Stranded Copper
Core Colours	Black/Brown/Grey/Green/Yellow
Insulation Material	R-EP-90 Elastomer
Number of Cores	4 Core + Earth
Overall Diameter	22.2 mm
Sheath Colour	Black
Sheath Material	Heavy Duty CPE Elastomer
Standards	AS 1125; AS 3191; AS/NZS 5000-1
Stranding	78/0.41 mm
Temperature	90 deg C
Tensile Strength	15 Nm
Voltage	0.6-1 kV
